ZN230-24MP MP-Bus Power Supply, AC 230/24 V - Belimo

£165.48 £137.90 Price match guarantee
On request
SKU
ZN230-24MP
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
 DATASHEET
DATASHEET

Product typeAccessory
Input Signal0..10 Vdc, MP-BUS
ManufacturerBelimo
Power Supply24Vac/Vdc

Visit iacs to learn more about each part of your ventilation system.

Currently available Belimo accessories can all be supplied for free or within 1-2 days.

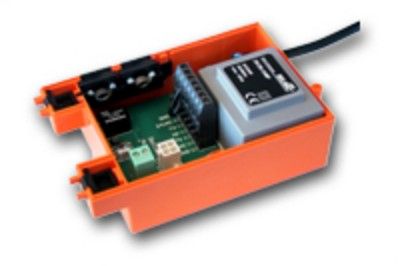

The Belimo ZN230-24MP is a MP-Bus Power Supply, AC 230/24 V .

The most economical Belimo system accessories are available from Iacs.

If you have any queries about installation or sizing, please refer to the aforementioned Belimo bespoke datasheet. If you require more specialised assistance, please email iacs.

ZN230-24MP MP-Bus Power Supply, AC 230/24 V

  • Connection AC230 V over Euro plug
  • Terminal connection for MP-actuators
  • Connection possibility for sensors
  • Socket for connecting parameterizing tools (PC-Tool, ZTH EU)

Electrical Data:

  • Nominal voltage AC 230 V, 50/60 Hz
  • Nominal voltage range AC 198 ... 264 V
  • Power consumption operation For sizing wire  11 W, 13VA ( Power consumption in relation to the connected actuator)
  • Secondary output power consumption Max. 10VA

Connection:

  • Power supply cable 0,9 m with Euro plug type 26
  • MP-Bus Screw terminal, 2-pin
  • Parameterization devices 3-pin Weidmüller socket
  • BF(G)24TL Fire damper 4-pin socket
  • MP-Actuators Screw terminal for 2 x wire 1,5mm2

Safety:

  • Protection class II Totally insulated
  • EMV Low voltage directive  CE according to 2004/108/EC,  CE according to 2006/95/EC
  • Mode of operation Type 1 (EN 60730-1)
  • Rated impulse voltage 2,5 kV (EN 60730-1)
  • Control pollution degree 2 (EN 60730-1)
  • Ambient temperature -20 … 50 °C
  • Non-operating temperature -40 … 80 °C
  • Moisture test 95% r.H., non-condensing (EN 60730-1)
  • Maintenance Maintenance-free

Dimensions:  See "Dimensions" at page 7

Weight: 750 g
