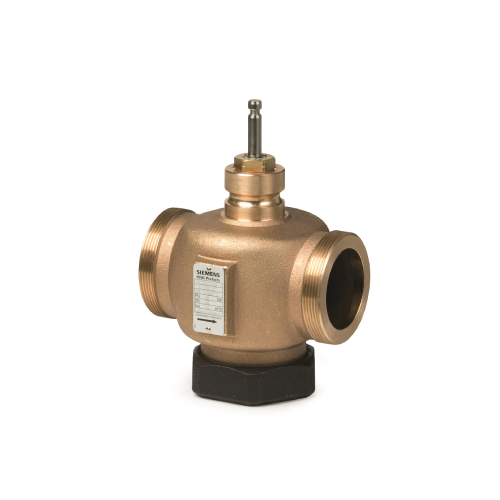

VVG41.50 - Siemens 2-port seat valve, external thread, PN16, DN50, kvs 40
£413.99
£344.99
On request
SKU
VVG41.50
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Siemens |
| Valve type | Globe Valve |
| Valve connection | External thread |
| Pressure | PN 16 |
| DN (mm) | DN 50 |
| Temperature range | -20°C to +120°C |
| Flow rate - m³/h | 40 kvs |
At IACS, you can find every part of your ventilation system. All Siemens-made Valves in stock are suitable for delivery within 5 to 7 days.
The Siemens VVG41.50 is a Valve used in building control and HVAC systems.
This Seat Valve provides a Pressure Nominal of PN 16.
The VVG41.50 Siemens Valve keeps a Diameter Nominal of DN 50.
The Amount of flow that this Ball Valve manages is KWS 40.
At IACS, you can get the best Siemens Valve for your system at the right price.
Consult the Siemens custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.
VVG Valves
∂ Bronze CuSn5Zn5Pb2 valve body
∂ DN 15...DN 50
∂ kvs 0.63...40 m3
/h
∂ Flat sealing connections with external thread G..B to ISO 228-1
∂ Sets of ALG…2 screwed fittings with threaded connection available from Siemens
∂ Can be equipped with SAX.. electromotoric or SKD.. and SKB.. electrohydraulic
actuators
