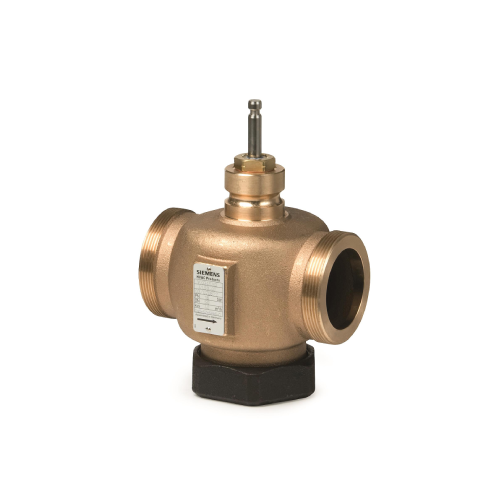

VVG41.32 - Siemens 2-port seat valve, external thread, PN16, DN32, kvs 16
£323.99
£269.99
On request
SKU
VVG41.32
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Siemens |
| Flow pattern | 2-Way |
| Valve type | Globe Valve |
| Valve connection | External thread |
| Pressure | PN 16 |
| DN (mm) | DN 32 |
| Temperature range | -20°C to +120°C |
| Flow rate - m³/h | 16 kvs |
All Siemens-made Valves that are in stock with iacs are delivered within 5 to 7 days.
The Siemens VVG41.32 is a Valve employed in building control applications and HVAC systems.
The Pressure Nominal that this Valve offer is PN 16.
The VVG41.32 Siemens Valve offers a Diameter Nominal of DN 32.
The Amount of flow that this Ball Valve manages is KWS 16.
The ideal Siemens Valves for your system are most affordable at IACS.
If you have questions concerning size or installation, refer to the Siemens custom datasheet above or email iacs for individualised support.
VVG Valves
∂ Bronze CuSn5Zn5Pb2 valve body
∂ DN 15...DN 50
∂ kvs 0.63...40 m3
/h
∂ Flat sealing connections with external thread G..B to ISO 228-1
∂ Sets of ALG…2 screwed fittings with threaded connection available from Siemens
∂ Can be equipped with SAX.. electromotoric or SKD.. and SKB.. electrohydraulic
actuators
