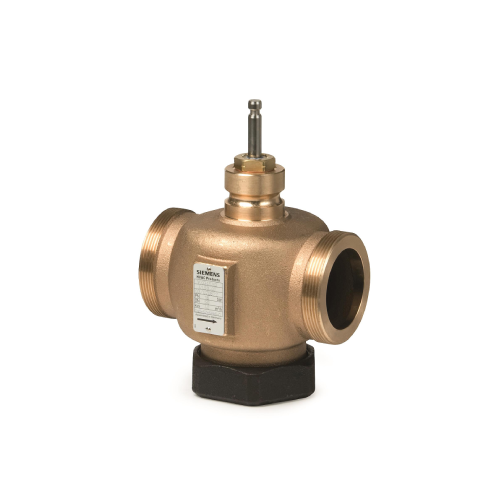

VVG41.14 - Siemens 2-port seat valve, external thread, PN16, DN15, kvs 2.5

£221.99 £184.99 Price match guarantee
On request
SKU
VVG41.14
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeWater Valve
ManufacturerSiemens
Flow pattern2-Way
Valve typeGlobe Valve
Valve connectionExternal thread
PressurePN 16
DN (mm)DN 15
Temperature range-20°C to +120°C
Flow rate - m³/h2.5 kvs

At IACS, you can find every part of your ventilation system. All Siemens-made Valves in stock are suitable for delivery within 5 to 7 days.

The Siemens VVG41.14 is a Valve used in building control and HVAC systems.

The Pressure Nominal that this Valve offer is PN 16.

The VVG41.14 Siemens Valve keeps a Diameter Nominal of DN 15.

The Amount of flow that this Ball Valve manages is KWS 2.5.

At IACS, you can get the best Siemens Valve for your system at the right price.

Consult the Siemens custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

VVG Valves

∂ Bronze CuSn5Zn5Pb2 valve body
∂ DN 15...DN 50
∂ kvs 0.63...40 m3
/h
∂ Flat sealing connections with external thread G..B to ISO 228-1
∂ Sets of ALG…2 screwed fittings with threaded connection available from Siemens
∂ Can be equipped with SAX.. electromotoric or SKD.. and SKB.. electrohydraulic
actuators
