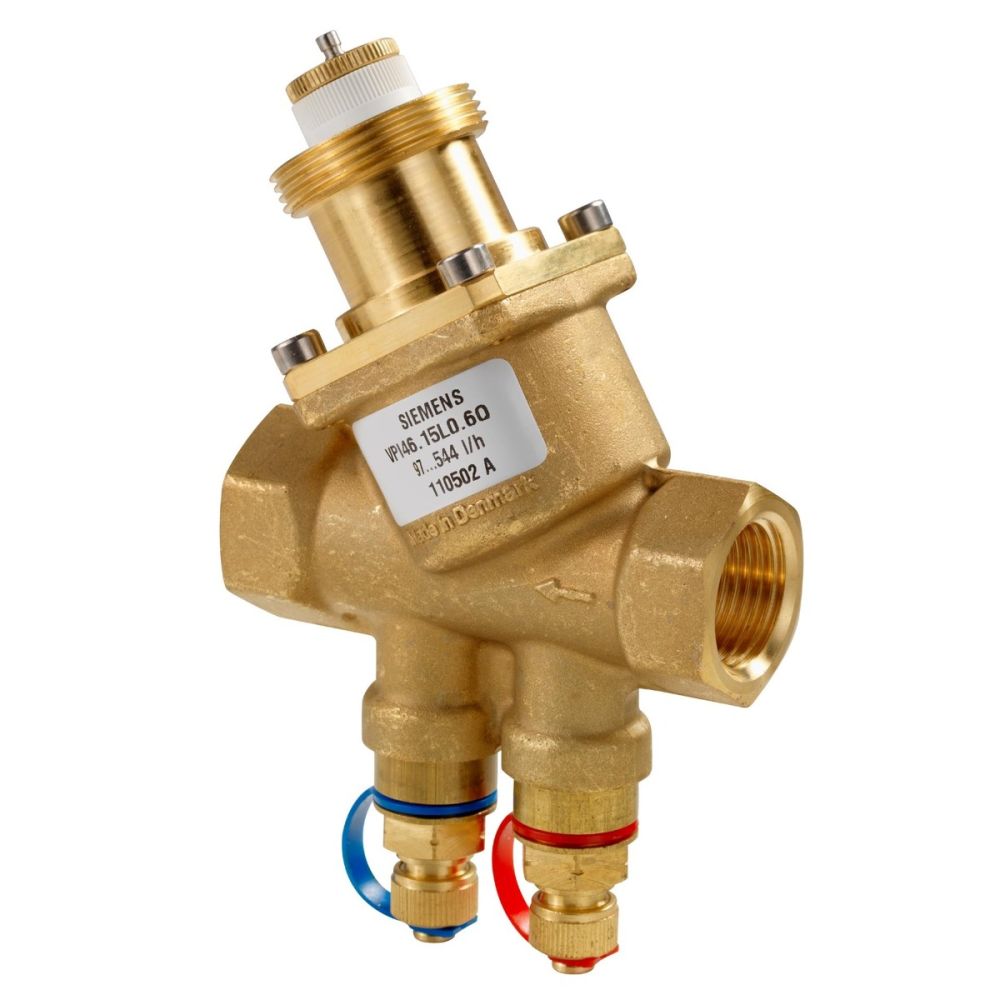

VPI46.15L0.6Q - Siemens 2-way PICV, internally threaded, DN15, with test points
£64.79
£53.99
On request
SKU
VPI46.15L0.6Q
Next Supplier Stock Update: 07/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Siemens |
| Flow pattern | 2-Way |
| Valve type | PICV (Pressure Independent Control Valve) |
| Valve connection | Internal thread |
| Pressure | PN 25 |
| DN (mm) | DN 15 |
Find all the components for your ventilation system at IACS. All Siemens Pressure Independent Control Valves in stock are ready for delivery in 5 to 7 days.
The Siemens VPI46.15L0.6Q is a PICV used in building control and HVAC systems.
The Pressure Nominal that this PICV Valve offer is PN 25.
The VPI46.15L0.6Q Siemens PIC Valve keeps a Diameter Nominal of DN 15.
At IACS, you can get the best Siemens Pressure Independent Control Valve for your system at the right price.
Consult the Siemens custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.
| Stroke | 2.5 mm, To DN 15: 2.5 mm;DN 20: 5 mm;DN 25-32: 5.5 mm;DN 40-50: 15 mm |
|
Leakage rate
|
Class IV (0…0.01% of volumetric flow V100)
|
|
PN class
|
PN 25
|
|
Volumetric flow V
|
575 l/h
|
|
Volumetric flow Vmin
|
100 l/h
|
| DN | 15 |
| Medium |
Water , Water with anti-freeze
|
|
Medium temperature
|
1…120 °C
|
|
Ambient temperature, operation
|
1…50 °C
|
|
Valve characteristic
|
Linear |
|
Permissible operating pressure
|
2500 kPa
|
|
Material, valve body
|
Brass CW602N (DZR)
|
|
Material, inside set
|
Dezincification resistant brass (DR), CW602N, stainless steel, PPS
|
|
Connecting thread
|
Rp ½ "
|
|
Mounting position
|
Upright to 90° inclined
|
|
Δpmax
|
600 kPa
|
|
ΔPmin
|
19 kPa
|
|
SUA.. Δpmax
|
600 kPa
|
|
SUA.. ΔPmin
|
19 kPa
|
| SSA.. Δpmax |
600 kPa
|
| SSA.. ΔPmin |
19 kPa
|
|
STA..3..
Δpmax |
600 kPa
|
| STA..3.. ΔPmin |
19 kPa
|
