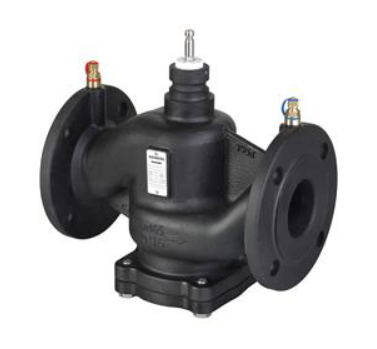

VPF44.65F35 - Siemens PICV valve, flanged, DN65
£1,043.99
£869.99
On request
SKU
VPF44.65F35
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Siemens |
| Flow pattern | 2-Way |
| Valve type | PICV (Pressure Independent Control Valve) |
| Valve connection | Flanged |
| Pressure | PN 16 |
| DN (mm) | DN 65 |
Find all the components for your ventilation system at IACS. All Siemens Pressure Independent Control Valves in stock are ready for delivery in 5 to 7 days.
The Siemens VPF44.65F35 is a PICV used in building control and HVAC systems.
The Pressure Nominal that this PICV Valve offer is PN 16.
This VPF44.65F35 Siemens PIC Valve keeps a Diameter Nominal of DN 65.
At IACS, you can get the best Siemens Pressure Independent Control Valve for your system at the right price.
Consult the Siemens custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.
| Stroke |
20 mm
|
| Leakage rate | Class IV (0…0.01% of volumetric flow) |
| PN class | PN 16 |
| Volumetric flow V | 35.8 m³/h |
| Volumetric flow Vmin | 5.1 m³/h |
| DN | 65 |
| Medium | Water , Water with anti-freeze |
| Medium temperature | 1…120 °C |
| Valve characteristic | Linear |
| Rangeability | 1:100 |
| Permissible operating pressure | 1600 kPa |
| Material, Valve body | Cast iron EN-GJL-250 |
| Material, inside set | Stainless steel, Brass (DZR) |
| Mounting position | Upright to 90° inclined |
| ΔPmin | 42.6 kPa |
| SAX..P Δpmax | 600 kPa |
| SAX..P Δps | 700 kPa |
| SQV..P Δpmax | 600 kPa |
| SQV..P Δps | 700 kPa |
PICVs PN 16 with flanged connections VPF43.. VPF44.. Pressure Independent Combi Valves
- With integrated pressure differential controller
- Valve body made of gray cast iron GJL-250 or GJL-400
- DN 50 - 200
- Volumetric flow 15 to 280 m3 /h nominal, with presetting
- Equipped with pressure test points P/T
- Can be equipped with SAX..P.., SAV..P.. or SQV..P.. electromotoric actuators
