TT-S-B - Sontay Space Temperature Sensors 10K4A1

Explore at iacs our full range of Sontay Sensors for your HVAC system

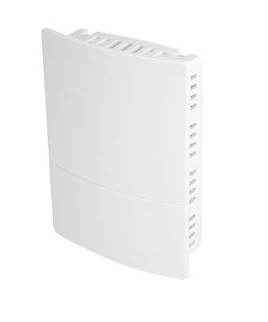

The Sontay TT-S-B is a Sensor used to measure the temperature in an environment.

This Sontay part works in a environment with a temperature from -10 to 60 degrees and 0 to 95% non condensing humidity.

Its Dimensions are 115 x 85 x 30mm and the weight 120g.

The IP Protection is IP30.

For technical advice, refer to the Sontay manualsheet and contact our iacs technical support team.

The TT-S-B range of wall mounting temperature sensors is fitted with 10K4A1 sensing elements. The TT-S can also be configured with a variety of user interface options including, set point control, fan speed switching (resistive) and momentary switches (optional). The base plate allows for both EU and North American fixings. FEATURES: - Wide range of sensing element types - Blends into the fabric of any building - ABS Flame retardant - Base plate compatible for both EU & North America fixings

Previously known as TT-1000-B
