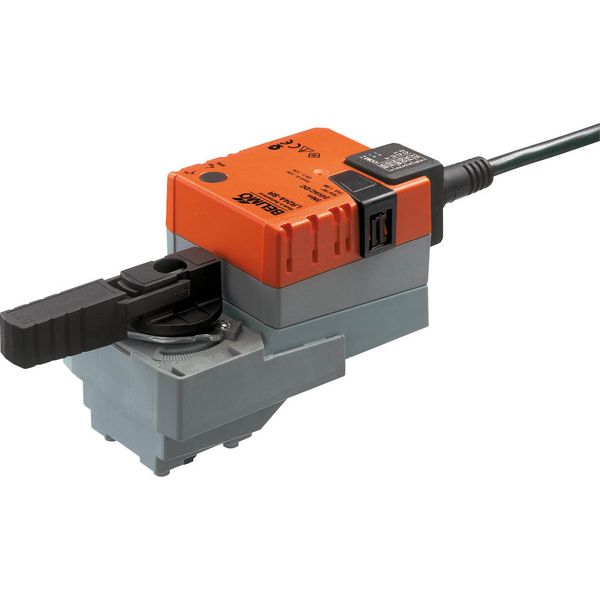

TRC24A-SR - Belimo Rotary actuator 2 Nm | ideal for ball valves

£157.92 £131.60 Price match guarantee
On request
SKU
TRC24A-SR
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeActuator
IP ratingIP54
Input Signal0..10 Vdc
ManufacturerBelimo
Power Supply24Vac/Vdc
Torque2 Nm
Running timeQuick (2.5 to 20 sec)
Actuator typeRotary
Ideal for ball valves

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo TRC24A-SR is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the TRC24A-SR is 2 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

TRC24A-SR - Rotary actuator 2 Nm

•    AC / DC 24 V, modulating
•    Running time motor 15 s
•    Operating range DC 2...10 V
•    Position feedback DC 2...10 V
•    Position feedback DC 2...10 V
•    Manual override temporary, permanent
•    Connection PVC cable 1m

Features


  • Mode of operation  The actuator is controlled by means of a standard control signal DC 0 ... 10 V. It opens to theposition dictated by this signal. The measuring voltage U allows the damper position (0 ... 100%)to be electrically indicated and serves as a follow-up control signal for other actuators.

  • Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assembly tool isintegrated in the plug-on position indicator. The mounting position in relation to the ball valve can be selected in 90° steps.

  • Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.

  • High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

  • Position feedback U5 Operation of the ball valve is optimised by a limiting ring. This ring reduces the angle of rotation from 95° to 90° , i.e. U5 will deviate from Y by approximately 0.3 V when the valve is closed.

•    Electrical Nominal voltage AC 24 V, 50/60 Hz DC 24 V
•    Nominal voltage range AC/DC 19.2 ... 28.8 V
•    Power consumption In operation 1.5 W @ nominal torque At rest 0.4 W For wire sizing  3 VA
•    Connection Cable 1 m, 4 x 0.75 mm2
•    Functional data Torque Motor Min. 2 Nm @ nominal voltage
•    Control Control signal Y DC 0 ... 10 V, typical input impedance 100 kΩ Operating range DC 2 ... 10 V
•    Position feedback (Measuring voltage) DC 2 ... 10 V, max. 1 mA (Measuring voltage U)
•    Position accuracy ±5%
•    Manual override Gearing latch disengaged with pushbutton (temporary-permanent)
•    Running time 15 s / 90°<)
•    Noise level Max. 45 dB (A) (without the valve)
•    Position indication Mechanical, add-on
•    Safety Protection class III Extra low voltage
•    Degree of protection IP54 in any mounting position
•    EMC CE according to 89/336/EWG
•    Mode of operation Type 1 (to EN 60730-1)
•    Rated impulse voltage 0.8 kV (to EN 60730-1)
•    Control pollution degree 3  (to EN 60730-1)
•    Ambient temperature range 0 ... +50°C
•    Media temperature +5 ... +110°C in control ball valve (–10°C with stem heating upon request)
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    Weight Approx. 550 g
