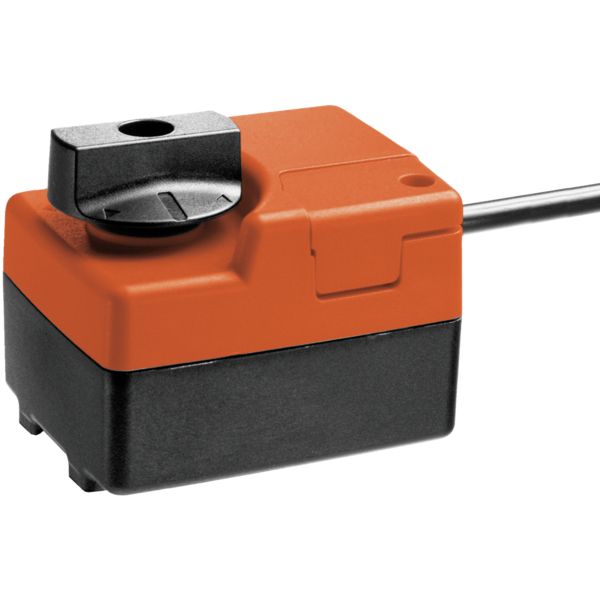

TR230-3 - Belimo Rotary actuator 2 Nm | ideal for ball valves

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo TR230-3 is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the TR230-3 is 2 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

TR230-3 - Rotary actuator 2 Nm

•    AC 230 V, 3-point
•    Running time motor 105 s
•    Manual override temporary

Features


• Simple direct mounting  Straightforward direct mounting on the ball valve with only one screw. The mounting position in relation to the ball valve can be selected in 90°<) steps.


• Manual operation Manual operation possible by lever (the gearing latch remains disengaged as long as the selfresetting lever is pressed).


• High functional reliability The actuator switches off automatically when the end stops are reached.Pulse duration ≥ 0.5 s


• Combination valve actuators Refer to the valve documentation for suitable valves, their permitted media temperatures and closing pressures.

•    Electrical Nominal voltage AC 230 V, 50 Hz
•    Power supply range AC 207 ... 253 V
•    Power consumption In operation 1 W at nominal torque For wire sizing 1VA
•    Connection Cable 1 m, 3 x 0.75 mm2
•    Parallel connection No
•    Functional data Torque Motor Min. 2 Nm @ nominal voltage
•    Manual override Temporary disengagement of gearing latch
•    Running time 105 s / 90°<)
•    Noise level Max. 35 dB (A)
•    Position indication Mechanical
•    Safety Protection class II Totally insulated
•    Degree of protection IP40
•    EMC CE according to 89/336/EEC Low voltage directive CE according to 73/23/EEC
•    Mode of operation Type 1 (to EN 60730-1)
•    Rated impulse voltage 4 kV (to EN 60730-1)
•    Control pollution degree 3  (to EN 60730-1)
•    Ambient temperature range –7 ... +50°C
•    Ambient temperature range +5... +50°C
•    Non-operating temperature –40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•    Maintenance Maintenance-free
•    Dimensions / Weight Dimensions See «Dimensions» on page 2
•    Weight Approx. 400 g (without ball valve)
