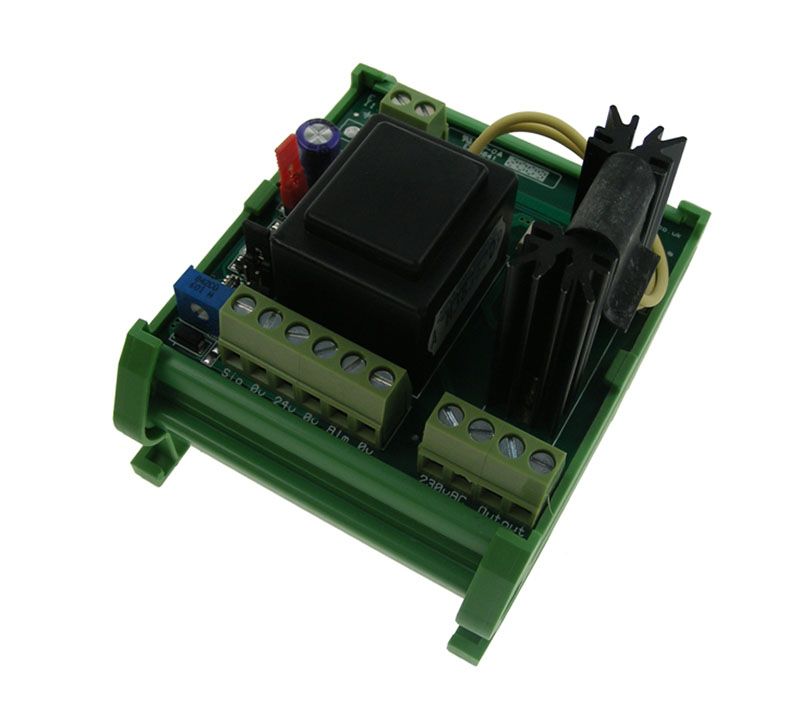

TCD1-2-SP - 2Kw 230Vac Single Phase Thyristor Power Controller – self-powered
£104.40
£87.00
On request
SKU
TCD1-2-SP
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Thyristor SSR's |
| Input Signal | 0..10 Vdc |
| Manufacturer | EC Products |
| KW Rating | 2 kW |
| Power Supply | 230Vac, 1Ph, 50Hz |
TCD1-2-SP - 2Kw 230Vac Single Phase Thyristor Power Controller – self-powered
- Selectable 0...10V, 0...5V, 2...10V, 4...20mA Control Input
- 2kW Max Heater Duty
- Auto Reset Over Temperature Protection
- Line Powered
- Neutral Pass Through Terminals
- DIN Rail (TS35) Mounting
The DIN Rail mounting Power Controllers TCD1 are suitable for providing control of electric heating loads from an analogue signal. Applications include electric heating coils, heating cables and electric furnaces. The units utilise solid-state switching with “zero crossing technology” to provide accurate switching control. All items are provided with an alarm output for over temperature protection and LED Indication of Output ON. The TCD1 are designed to mount on DIN rail.
