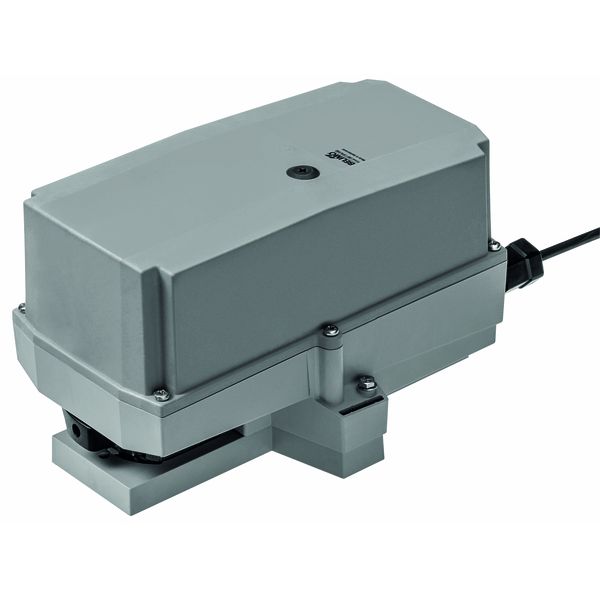

SR24P-R - Belimo Rotary actuator butterfly valve retrofit 20 Nm | ideal for rotary valves and butterfly valves

We provide Free Delivery and Next 1-2 Day Delivery for all Belimo Actuators that are in stock at iacs.

The Belimo SR24P-Ris a kind of Actuator used to operate valves in HVAC applications and systems.

The force applied by the Torque of the SR24P-R is 20 Nm.

This Valve Actuator needs to be supported by a power supply of 24Vac/Vdc.

You may utilise this Belimo component with Butterfly Valves.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

SR24P-R - Rotary actuator for ball valve 20 Nm

•    AC / DC 24 V, Open/Close, 3-point
•    Running time motor 90 s / 90°
•    IP 66/67, Manual override with push-button
•    Connection cable FRNC 1 m
•    Direction of rotation reversible (right/left)
•    Position indicator mechanical, plug-in

Features

• Fields of application The actuator is particularly suited for use in difficult conditions, e.g. in the field of: – Wood drying – Animal breeding – Food processing – Agricultural – Swimming baths / Bathrooms – Rooftop units – General outdoor applications – Changing climate



• Resistances                   Test                                                      Test standard                Testing body
•
                            Noxious gas tests                                  EN 60068-2-60                 Fraunhofer Institute ICT / DE
                                        Salt fog spray test                                 EN 60068-2-52                 Fraunhofer Institute ICT / DE
                                        Ammoniac test                                       DIN   50916-2                   Fraunhofer Institute ICT / DE
                                        Climatic test                                           IEC 60068-2-30               Trikon Solutions AG / CH
                                        Disinfectants (animals)                                                                  Trikon Solutions AG / CH
                                        UV test                                                   EN 60068-2-5                 Quinel / Zug CH
                                        (Solar radiation at ground level)            EN 60068-2-63


• Used materials               Actuator parts                                     Material
                                           Actuator housing                                 Polypropylene (PP)
                                           Cable glands / hollow shaft                 Polyamide (PA)
                                           Connection cable                                FRNC
                                           Clamp / screws in general                   Steel 1.4404
                                           Seals                                                   EPDM
                                           Form-fit insert                                      Anodised aluminium


• Application For butterfly valves and rotary valves (applications up to approx. DN80) with the following mechanical specifications:
  – ISO 5211: F03, F04 or F05 (diameter of the circular hole on the flange for mounting the fitting)
  – ISO 5211: square, flat head or cuneiform stem head geometry

• Simple direct mounting Simple direct mounting on the butterfly valves and rotary valves with mounting flange.The mounting position in relation to the fitting can be selected in 90° steps.


• Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).

• Adjustable angle of rotation  Adjustable angle of rotation with mechanical end stops. Standard setting 0 ... 90°<).The housing cover must be removed to set the angle of rotation.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.


•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 2 W @ nominal torque At rest 0.2 W For wire sizing 4 VA
•     Connection Halogen-free cable 1 m, 3 x 0.75 mm2
•     Parallel connection Possible, note the performance data
•     Functional data Torque (nominal torque) Min. 18 Nm @ nominal voltage
•     Manual override Gearing latch disengaged with pushbutton, can be locked
•     Running time 90 s / 90°
•     Sound power level Max. 45 dB (A) (without butterfly valve or rotary valve)
•     Position indication Mechanical, pluggable
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP66 + IP67
•     EMC CE according to 2004/108/EC
•     Mode of operation Type 1 (EN 60730-1)
•     Rated impulse voltage 0.8 kV (EN 60730-1)
•     Control pollution degree 4 (EN 60730-1)
•     Ambient temperature –30 ... +50°C)
•     Non-operating temperature –40 ... +50°C
•     Ambient humidity 100% r.H.
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 4
•     Weight Approx. 1.55 kg (without butterfly valve)
