The Belimo SR24P-5is a kind of Actuator used to operate valves in HVAC applications and systems.

The force applied by the Torque of the SR24P-5 is 20 Nm.

This Valve Actuator needs to be supported by a power supply of 24Vac/Vdc.

This Belimo component can be used with Butterfly Valves.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

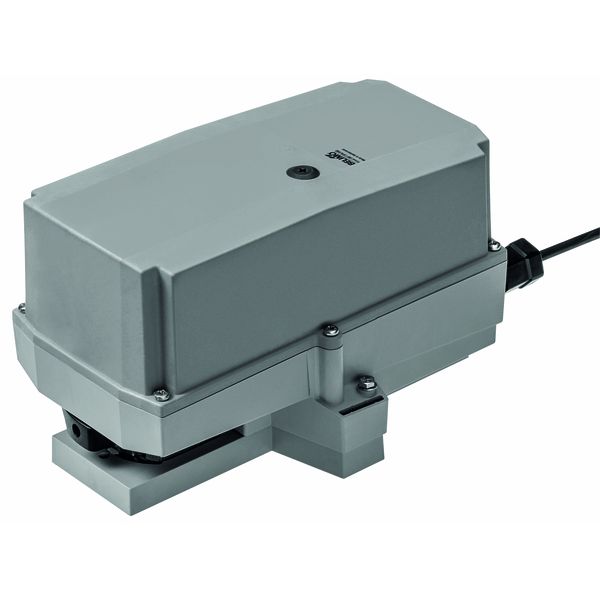

SR24P-5 Rotary Actuator Butterfly Valve, 20 Nm, AC/DC 24 V, 90 s

• Rotary actuator butterfly valve
• 20 Nm, 90°
• AC/DC 24 V, open-close, 3-point
• Motor running time 90 s
• IP 66/67, manual override with push-button
• Connection cable FRNC 1 m
• Position indication mechanical, pluggable

Fields of application: The actuator is particularly suited for use in difficult conditions, e.g. in the field of: - Wood drying - Animal breeding - Food processing - Agricultural - Swimming baths / bathrooms - Rooftop ventilation plant rooms - General outdoor applications

Resistances: Noxious gas test EN 60068-2-60 (Fraunhofer Institut ICT / DE) Salt fog spray test EN 60068-2-52 (Fraunhofer Institut ICT / DE) Ammoniac test DIN 50916-2 (Fraunhofer Institut ICT / DE) Climate test IEC60068-2-30 (Trikon Solutions AG / CH) Disinfectant (animals) (Trikon Solutions AG / CH) UV Test (Solar radiation at ground level) EN 60068-2-5, EN 60068-2-63 (Quinel / Zug CH)

Used materials: Actuator housing polypropylene (PP) Cable glands / hollow shaft polyamide (PA) Connecting cable FRNC Clamp / screws in general Steel 1.4404 Seals EPDM Form fit insert aluminium anodised

Tappet shaft: The form fit adapter ZPV-14 is included in the scope of delivery.

Direct mounting: Simple direct mounting on the rotary valve or butterfly valve with mounting flange. The mounting orientation in relation to the fitting can be selected in 90° steps.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked). The housing cover must be removed for manual override.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Adjustable angle of rotation: Adjustable angle of rotation with mechanical end stops. Standard setting 0 ... 90°. The housing cover must be removed to set the angle of rotation.

Combination valve/actuator: For valves with the following mechanical specifications in accordance with ISO 5211 F05: - Square stem head SW = 14 mm for form fit coupling of the rotary actuator. - Hole circle d = 50 mm

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
• Power consumption in operation 2.5 W
• Power consumption in rest position 0.2 W
• Power consumption for wire sizing 5.5 VA
• Connection supply / control Cable 1 m, 3 x 0.75 mm² (halogen-free)
• Parallel operation Yes (note the performance data)

Functional data:

• Torque motor Min. 20 Nm
• Manual override Gear disengagement with push-button, can be locked
• Running time motor 90 s / 90°
• Sound power level motor max. 45 dB(A)
• Position indication Mechanically, pluggable

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Protection class UL UL Class 2 Supply
• Degree of protection IEC/EN IP66 + IP67
• Degree of protection NEMA/UL NEMA 4, UL Enclosure Type 4
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 4
• Ambient temperature -30...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 100% r.h.
• Maintenance Maintenance-free

Mechanical data:

Connection flange F05

Weight: approx. 2.0 kg
