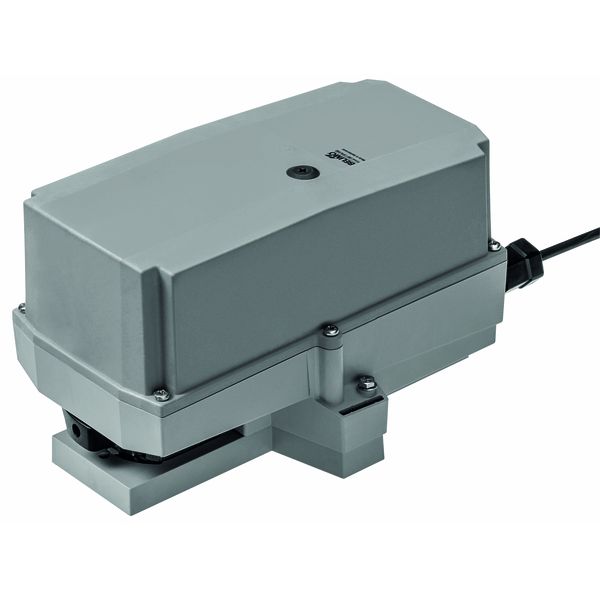

SR230P-R - Belimo Rotary actuator butterfly valve retrofit 20 Nm | ideal for rotary valves and butterfly valves

We provide Free Delivery and Next 1-2 Day Delivery for all Belimo Actuators that are in stock at iacs.

The Belimo SR230P-Ris a kind of Actuator used to operate valves in HVAC applications and systems.

The force applied by the Torque of the SR230P-R is 20 Nm.

This Valve Actuator needs to be supported by a power supply of 230Vac.

This Belimo part is suitable for Butterfly Valves.

If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.

SR230P-R - Rotary actuator butterfly valve retrofit 20 Nm

•    AC 230 V, Open/Close, 3-point
•    Running time motor 90 s / 90°
•    IP 54, Manual override temporary, permanent
•    Connection PVC cable 1m
•    Direction of rotation reversible (right/left)
•    Position indicator mechanical, plug-in

Features


• Fields of application The actuator is particularly suited for use in difficult conditions, e.g. in the field of:
  – Wood drying
  – Animal breeding
  – Food processing
  – Agricultural
  – Swimming baths / Bathrooms
  – Rooftop units
  – General outdoor applications
  – Low temperatures (the separately available actuator with built-in heater ex works is suitable for
  use up to –40°C)
  – Changing climate / frequent and strong fluctuations in temperature (Recommendation: to
  prevent internal condensation, use the separately available actuator with built-in heater ex
  works)



• Resistances                     Test                                                    Test standard               Testing body
•
                            Noxious gas tests                               EN 60068-2-60                Fraunhofer Institute ICT / DE
                                        Salt fog spray test                                EN 60068-2-52                Fraunhofer Institute ICT / DE
                                        Ammoniac test                                     DIN   50916-2                   Fraunhofer Institute ICT / DE
                                        Climatic test                                          IEC 60068-2-30               Trikon Solutions AG / CH
                                        Disinfectants (animals)                                                                  Trikon Solutions AG / CH
                                        UV test                                                    EN 60068-2-5                  Quinel / Zug CH
                                        (Solar radiation at ground level)               EN 60068-2-63


• Used materials                 Actuator parts                                    Material
                                           Actuator housing                                     Polypropylene (PP)
                                           Cable glands / hollow shaft                  Polyamide (PA)
                                           Connection cable                                    FRNC
                                           Clamp / screws in general                    Steel 1.4404
                                           Seals                                                         EPDM

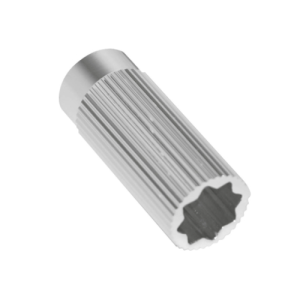

                                           Form-fit insert                                          Anodised aluminium


• Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assembly tool is integrated in the plug-on position indicator. The mounting position in relation to the fitting can be selected in 90° steps.


• Manual override Manual override with pushbutton possible (the gear is disengaged for as long as the button is pressed or remains locked).


•  Adjustable angle of rotation  Adjustable angle of rotation with mechanical end stops. Standard setting 0 ... 90°<) .The housing cover must be removed to set the angle of rotation.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.



•     Electrical data Nominal voltage AC 100 ... 240 V, 50/60 Hz
•     Power supply range AC 85 ... 265 V
•     Power consumption In operation 2.5 W @ nominal torque At rest 0.4 W Dimensioning 6 VA
•     Connection Halogen-free cable 1 m, 3 x 0.75 mm2
•     Parallel connection Possible, note the performance data
•     Functional data Torque Min. 18 Nm @ nominal voltage
•     Manual override Gearing latch disengaged with pushbutton, can be locked
•     Running time ≤90 s / 90°<)
•     Sound power level Max. 45 dB (A) (without butterfly valve resp. rotary valve)
•     Position indication Mechanical, pluggable
•     Safety Protection class II totally insulated
•     Degree of protection IP66 + IP67
•     EMC CE according to 2004/108 EC Low-voltage directive CE according to 2006/95/EC
•     Mode of operation Type 1
•     Rated impulse voltage 2.5 kV
•     Control pollution degree 4
•     Ambient temperature 0 ... +50°C (actuator with built-in heater –40 ... +50°C)
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity 95% r.h., non-condensating
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 4
•     Weight Approx. 1.55 kg
