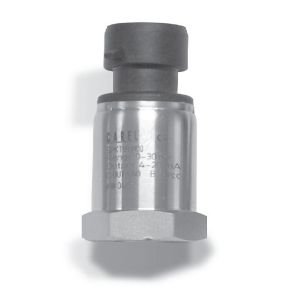

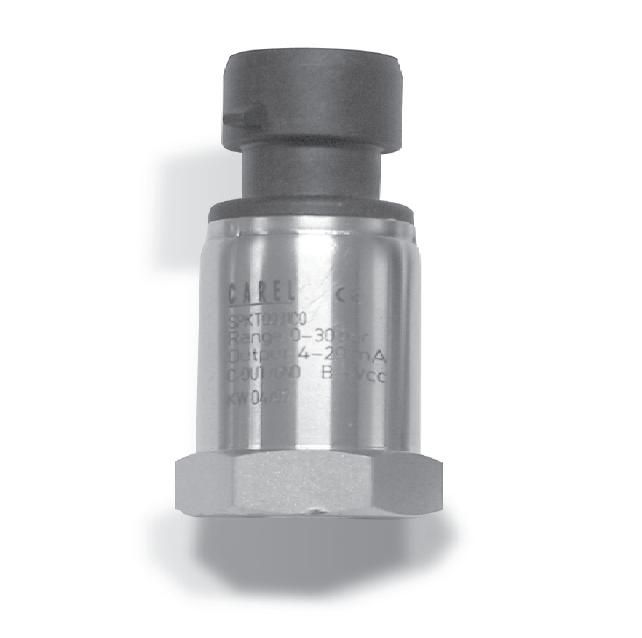

SPKT0011D0 - Carel TRASD.4-20MA 0...10 BARG (0...145 PSIG) D SERIE SEALED GAGE 8-28V PACKARD 7/16INCH FEMALE
£98.82
£82.35
On request
SKU
SPKT0011D0
Next Supplier Stock Update: 11/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Sensors & Stats |
| IP rating | IP65 |
| Output Signal | 4..20 mA |
| Manufacturer | Carel |
| Sensor Type | Gas Pressure Transducer |
| Pressure range | 0 to 10 Bar |
Explore at iacs our full range of Carel Transducers for your HVAC system
The Carel Pressure Transducers now offer superior performance in terms of precision, better support for overpressure, wider operating temperature range, and vibration resistance in addition to being offered in a ratiometric version.
The Carel SPKT0011D0 is a Sensor Transducer compatible with the following refrigerants: R12, R22, R134a, R404a, R407c, R410a, R502, R507 ,R744, Not compatible with R717 (Ammonia)
The Pressure range measured is 0...10 BARG.
The Power Supply for this Carel transducer is 10...36 Vdc.
This Carel transducer uses a Packard-Male connection.
The Index of Protection is IP65, IP67 if with connector.
For technical advice, refer to the Carel manualsheet and contact our iacs technical support team..
-
|
TECHNICAL SPECIFICATIONS SPK*0 |
|
|
|
|
|
power supply |
8 to 28 Vdc
±20% |
|
Output |
4...20mA |
|
Operating conditions |
-25T80 °C male / -40T135°C female |
|
Male and female connector thread |
7/16” 20 UNF |
|
Index of protection |
IP65, IP67 see codes table |
