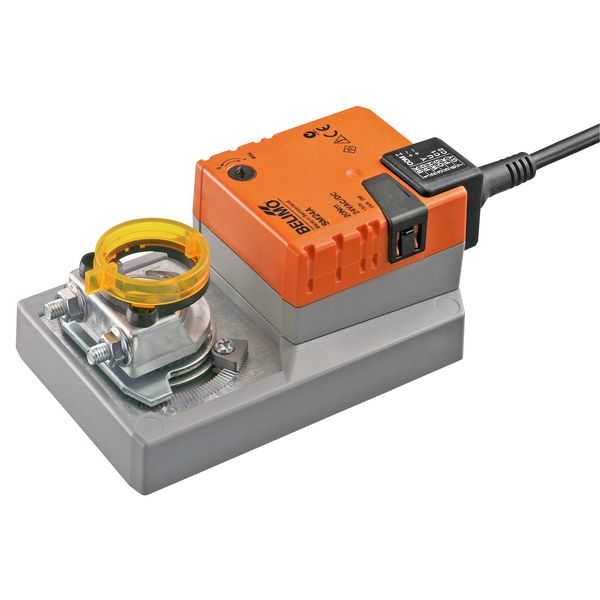

SM24A - Belimo Damper actuator 20 Nm, 150 s, 95° AC / DC 24 V
£157.92
£131.60
Only 1 left
In stock
SKU
SM24A
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | On/Off |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Torque | 20 Nm |
| Running time | 140 to 150 sec |
| Actuator type | Rotary |
| Control Type | Open/Close |
Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock
The Belimo SM24A is a type of Actuator used to control dampers in HVAC systems and applications.
This kind of Actuator rotates the damper in order to control it.
The force applied by the Torque of the SM24A is 20 Nm.
This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.
The ideal Belimo Actuators for your system are most affordable at iacs.
If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.
The Belimo SM24A Damper Actuator is a reliable and efficient solution for controlling air dampers in HVAC systems. This actuator is designed to operate with a nominal voltage of AC 24 V, 50/60 Hz or DC 24 V, with a voltage range of AC 19.2 to 28.8 V or DC 21.6 to 28.8 V.
With a power consumption of 2 W at nominal torque and 0.2 W at rest, this actuator offers energy efficiency without sacrificing performance. The actuator also comes with a 1-meter cable, 3 x 0.75 mm2, making it easy to connect to your HVAC system.
The Belimo SM24A offers a nominal torque of at least 20 Nm at nominal voltage, making it capable of smoothly and accurately controlling dampers. The direction of rotation is reversible with switch 0 or 1, providing flexibility in operation. The actuator also has a manual override feature, allowing you to disengage the gearing latch with a push button and lock it for convenience.
The angle of rotation of the Belimo SM24A is a maximum of 95° and can be limited at both ends with adjustable mechanical end stops. It also has a running time of 150 s / 90°, ensuring smooth and accurate operation. Additionally, the actuator has a maximum sound power level of 45 dB (A) and position indication is mechanical and pluggable.
Safety is a top priority with the Belimo SM24A, which is why it operates under Type 1 mode of operation and has a rated impulse voltage of 0.8 kV. It also has a control pollution degree of 3, making it safe to use in a variety of environments. The ambient temperature range is –30 to +50°C, while the non-operating temperature range is –40 to +80°C. The actuator is maintenance-free, making it a reliable solution for your HVAC system.
The Belimo SM24A Damper Actuator has dimensions of approximately 1 kg, making it lightweight and easy to install. Its compact design allows it to fit seamlessly into your HVAC system while providing superior performance. Overall, this actuator is an excellent choice for those who want to achieve precise and efficient control over their air dampers.
