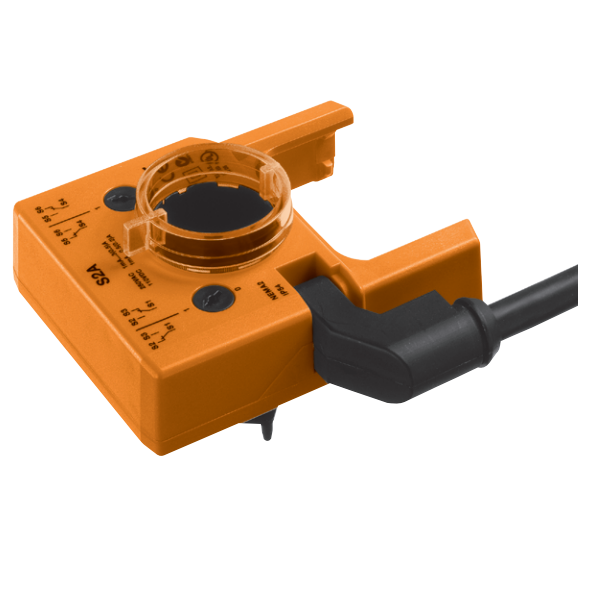

S2A - Belimo Auxiliary switch add-on for damper actuators and rotary actuators

£66.19 £55.16

On request

SKU

S2A

Next Supplier Stock Update: 19/03/2025

EXPLORE MORE VERSIONS AND ACCESSORIES

S2A GR - Belimo Auxiliary switch add-on

£67.28 £56.07

S2A-F - Belimo Auxiliary switches, 2 x SPDT

£98.28 £81.90

S2A/500 GR - Belimo Auxiliary switch add-on grey for damper actuators and rotary actuators, AC 250, cable 5 m FRNC

£91.56 £76.30

S2A-H - Belimo Add-on auxiliary switch 2 x SPDT

£99.96 £83.30

Overview

Manuals & Datasheets

DATA-SHEET

Product type	Accessory
IP rating	IP54
Manufacturer	Belimo

Description

For more information on each component of your ventilation system, go to iacs.

All Belimo accessories are currently in stock and can be delivered for free or in one to two days.

The Belimo S2A is a Auxiliary switch add-on .

The most economical Belimo system accessories are available from Iacs.

If you have any queries about installation or sizing, please refer to the aforementioned Belimo bespoke datasheet. If you require more specialised assistance, please email iacs.

Features

Application The auxiliary switches are used to signal positions or to execute switching functions in any are used to signal positions or to execute switching functions in any angular position.
Mode of operation A form-fit engagement is created between a driver disc and the spindle clamp (Damper (Damper actuators) or on the position indicator (Rotary actuators), causing the position to be directly , causing the position to be directlytransferred to the trip cams of the microswitches.The switching points can be freely selected within the specified range of rotation by means of a dial. The current switch position can be read at any time.
Installation The auxiliary switches are attached directly to the spindle clamp (Damper actuators) or on the spindle clamp (Damper actuators) or on theposition indicator (Rotary actuators). The guiding grooves between the housing and the switch . The guiding grooves between the housing and the switchensure a tightly sealing fit.

The Belimo S2A Auxiliary Switch is a high-performance switch designed for use with damper actuators and rotary actuators. With a switching capacity of 1 mA to 3 (0.5) A and an AC voltage of 250V, it offers a versatile and reliable solution for controlling the full range of actuator rotation.

Adjustable over the full range of rotation, the switching point can be easily preset using the scale. The device also offers exceptional safety features, with a protection class of II, totally insulated and a degree of protection of IP54, NEMA2, and UL Enclosure Type 2.

Meeting the CE standard according to 2006/95/EC and certified to IEC/EN 60730-1 and IEC/EN 60730-2-14, the switch is also CULus compliant according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02.

With a rated impulse voltage of 4 kV and a control pollution degree of 3, the device can operate in temperatures ranging from -30 ... +50°C, and can withstand non-operating temperatures of -40 ... +80°C. It also has a high ambient humidity tolerance of 95% r.h., non-condensing.

Maintenance-free and lightweight, the S2A switch is an ideal choice for any application requiring reliable and efficient control. With a weight of approximately 250g, it is easy to install and operate.
