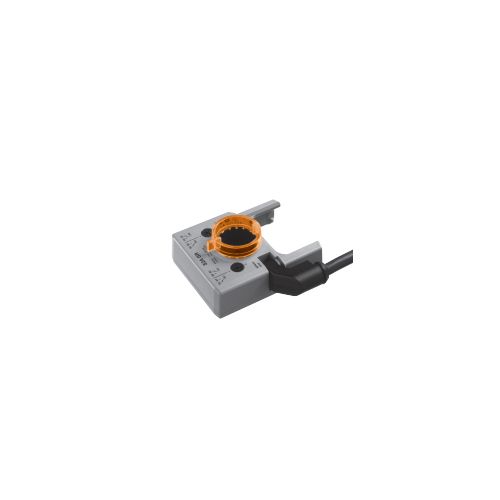

S2A/500 GR - Belimo Auxiliary switch add-on grey for damper actuators and rotary actuators, AC 250, cable 5 m FRNC
£91.56
£76.30
On request
SKU
S2A/500 GR
Next Supplier Stock Update: 19/03/2025
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Accessory |
| IP rating | IP54 |
| Manufacturer | Belimo |
To learn more about each component of your ventilation system, Visit iacs.
All Belimo accessories can be delivered for free or within one to two days if they are currently in stock.
The Belimo S2A/500 GR is a GR Auxiliary switch add-on grey 2 x SPDT 1 mA3 (05 A) A, AC 250, cable 5 m FRNC.
Iacs offers the most inexpensive Belimo system add-ons.
If you have any inquiries about installation or sizing, please refer to the aforementioned Belimo bespoke datasheet. If you require more specialised support, e-mail iacs.
Features
- Application The auxiliary switches are used to signal positions or to execute switching functions in any are used to signal positions or to execute switching functions in any angular position.
- Mode of operation A form-fit engagement is created between a driver disc and the spindle clamp (Damper (Damper actuators) or on the position indicator (Rotary actuators), causing the position to be directly , causing the position to be directlytransferred to the trip cams of the microswitches.The switching points can be freely selected within the specified range of rotation by means of a dial. The current switch position can be read at any time
- InstallationThe auxiliary switches are attached directly to the spindle clamp (Damper actuators) or on the spindle clamp (Damper actuators) or on theposition indicator (Rotary actuators). The guiding grooves between the housing and the switch . The guiding grooves between the housing and the switchensure a tightly sealing fit.
The Belimo S2A/500 GR Auxiliary Switch is a versatile and reliable option for controlling damper and rotary actuators. With a switching capacity of 1 mA to 3 (0.5) A and an AC voltage of 250V, this switch can handle a wide range of applications. The adjustable switching point can be preset over the full range of rotation (0 to 1), making it easy to set to your specific needs.
Designed with safety in mind, the S2A/500 GR has protection class II and is totally insulated for added protection. It is also IP54, NEMA2, and UL Enclosure Type 2 rated for additional durability. Additionally, it is CE compliant according to 2006/95/EC and certified to IEC/EN 60730-1 and IEC/EN 60730-2-14, as well as CULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02.
This auxiliary switch is rated for a impulse voltage of 4 kV and is suitable for use in environments with control pollution degree 3. It can withstand temperatures ranging from -30 to +50°C, and non-operating temperatures of -40 to +80°C, making it suitable for a wide range of applications. It has a maintenance-free design, weighing approximately 720g.
In summary, the Belimo S2A/500 GR Auxiliary Switch is a reliable and versatile switch suitable for controlling damper and rotary actuators. With its adjustable switching point, protection class II and CE compliance, it is ideal for a wide range of applications. It is also maintenance-free, making it easy to use and maintain.
