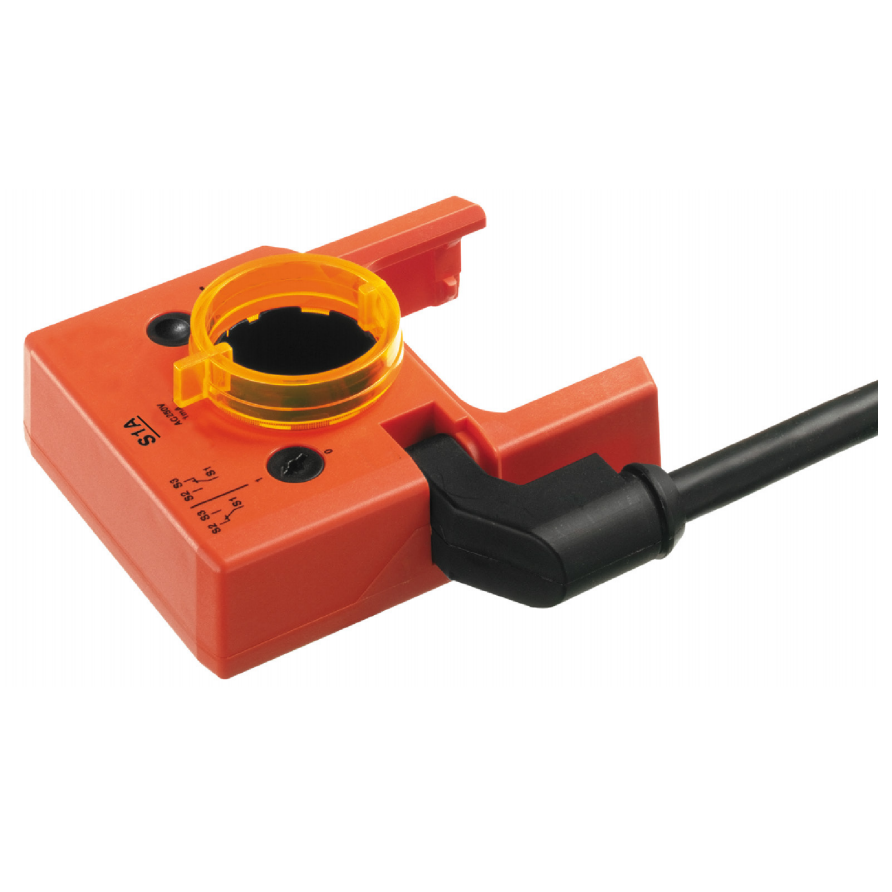

S1A - Belimo Auxiliary switch add-on for damper actuators and rotary actuators
£49.39
£41.16
Only 2 left
In stock
SKU
S1A
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Accessory |
| IP rating | IP54 |
| Manufacturer | Belimo |
Visit iacs for further details on each part of your ventilation system.
Currently in stock, all Belimo accessories can be delivered for free or in one to two days.
The Belimo S1A is a Auxiliary switch add-on .
Iacs offers the most affordable Belimo system accessories.
Please refer to the aforementioned Belimo custom datasheet if you have any questions concerning installation or sizing, or contact iacs by email if you need more specialised help.
Features
- Application The auxiliary switches are used to signal positions or to execute switching functions in any are used to signal positions or to execute switching functions in any angular position.
- Mode of operation A form-fit engagement is created between a driver disc and the spindle clamp (Damper (Damper actuators) or on the position indicator (Rotary actuators), causing the position to be directly , causing the position to be directlytransferred to the trip cams of the microswitches.The switching points can be freely selected within the specified range of rotation by means of a dial. The current switch position can be read at any time.
- Installation The auxiliary switches are attached directly to the spindle clamp (Damper actuators) or on the spindle clamp (Damper actuators) or on theposition indicator (Rotary actuators). The guiding grooves between the housing and the switch . The guiding grooves between the housing and the switchensure a tightly sealing fit.
The Belimo S1A Auxiliary Switch is a versatile and reliable option for controlling damper actuators and rotary actuators. With a switching capacity of 1 mA to 3 (0.5) A, and an adjustable switching point that can be preset over the full range of rotation, this switch can be easily customized to fit your specific needs.
Additionally, it offers safety features such as protection class II insulation and a degree of protection of IP54, NEMA2, and UL Enclosure Type 2. This product is certified to IEC/EN 60730-1 and IEC/EN 60730-2-14, CULus according to UL 60730-1A and UL 60730-2-14 and CAN/CSA E60730-1:02 and has a Rated impulse voltage of 4 kV and Control pollution degree of 3.
It can operate in a wide range of temperature, from -30 to +50°C and has a Non-operating temperature range of -40 to +80°C, and can handle a 95% r.h., non-condensating environment. It is maintenance-free and lightweight at approximately 200g.
