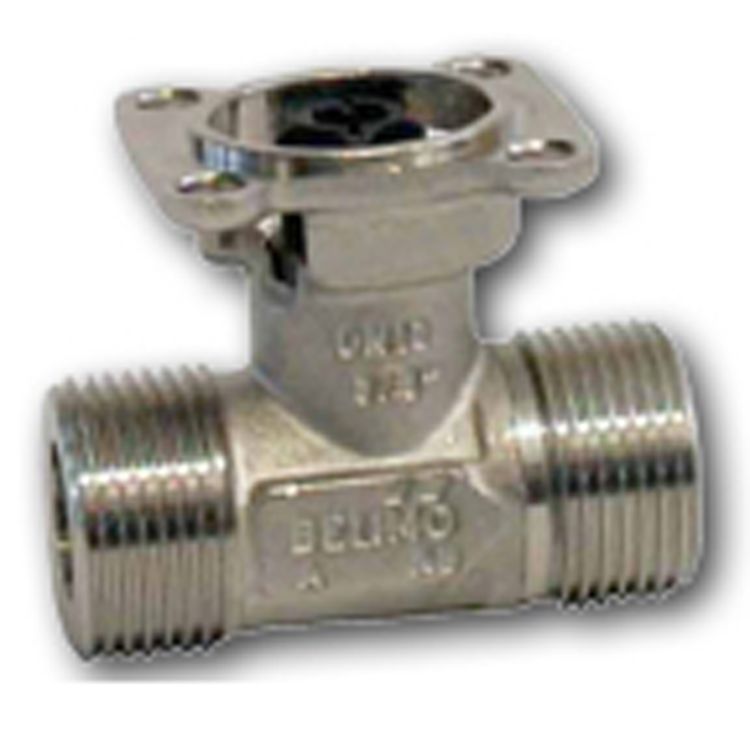

R423 - Belimo 2-way control ball valve, PN16 external thread G 1 1/2", DN 25, kvs 10

All Valves made by Belimo that are in stock with iacs are shipped for free or within 1-2 days.

The Belimo R423 is a Valve used as a control or shutdown Valve in heating, ventilation, and air conditioning systems.

The Pressure Nominal of this Belimo control Valve is PN 40.

This R423 Belimo Valve has 2 port opening connection.

IACS can help you get the best-priced Belimo Ball Valve for your system.

If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.

Features

• Mode of operation The characterized control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and move the ball of the valve – the throttling device – to the opening position dictated by the control signal. Open the ball valve counterclockwise and close it clockwise.


• Flow characteristic Equal-percentage characteristic of the flow rate ensured by the integral characterizing disc..




•     Functional data Flow media Cold and hot water, water with max. 50% volume of glycol
•     Temperature of medium +5°C ... +110°C 1), (lower or higher temperatures on request)
•     Rated pressure ps see «Type overview»
•     Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173), n(gl): see «Type overview»
•     Rangeability Sv See «Type overview»
•     Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)
•     Pipe connector External thread to ISO 228/1
•     Differential pressure Δpmax 350 kPa (200 kPa for low-noise operation), Closing pressure Δps 1400 kPa
•     Angle of rotation 90°<) (Operating range 15 ... 90°<)
•     AInstallation position Upright to horizontal (in relation to the stem)
•     Maintenance Maintenance-free
•     Materials Fitting Forged, nickel-plated brass body
•     Valve cone and stem Stainless steel
•     Stem seal O-Ring, EPDM
•     Ball seat PTFE, O-Ring Viton
•     Characterizing disk TEFZEL
•     Ball seat TEFZEL
•     Characterising disk TEFZEL
•     Dimensions / Weights see «Dimensions and weights», page 3
•     Motorizing see the complete overview of water solutions
•     1)The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
