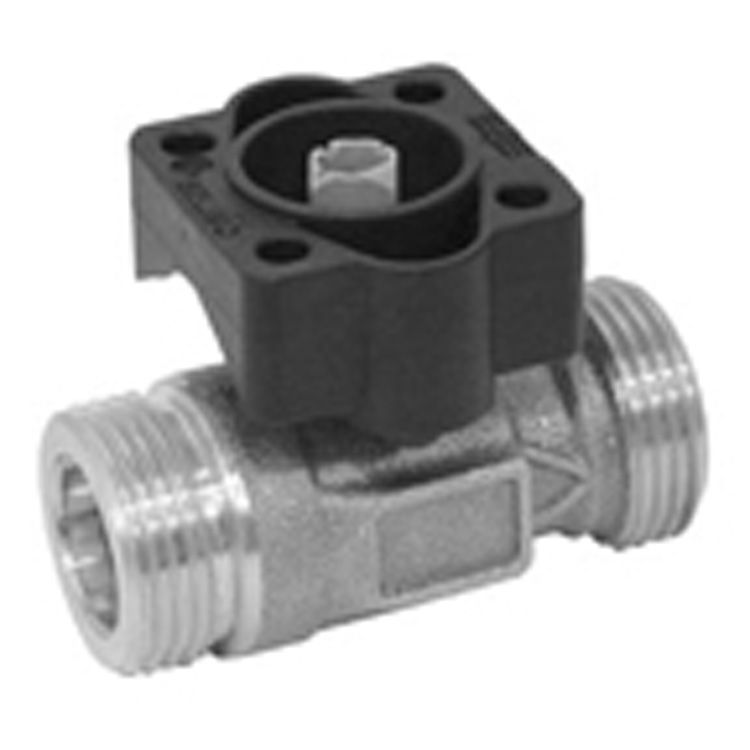

R405DK - Belimo 2-way control ball valve PN40

All Belimo ball Valves with iacs that are in stock are supplied for free or within 1-2 days.

The Belimo R405DK is a Valve used in HVAC systems (heating, ventilation, and air conditioning) systems as a control or shutdown Valve .

The Pressure Nominal of this type of Belimo Valve is PN 40.

This R405DK Belimo Valve has a 2 port opening connection.

You can find the best Belimo Valve for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or contact iacs through email for personalised assistance.

Features

• Mode of operation The characterised control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and moves the ball of the valve – the throttling device – to the position dictated by the control signal. The valve is opened counterclockwise and closed clockwise.

• Flow characteristic Equal-percentage flow control is ensured by the integrated characterising disc.

• Patent Applied for.




•     Functional data Flow media Cold, warm and hot water, drinking water, low-temperature steam
•     Media temperature For water,+2°C ... +130°C, For steam +2°C ... +120°C
•     Rated pressure ps 2700 kPa
•     Flow characteristic Control path A – AB: equal percentage (VDI/VDE 2173), n(gl): 3.2, optimized in the opening range
•     Rangeability Sv see «Overview of types»
•     Leakage rate A Air bubble-tight (EN 12266)
•     Z Value 2) Min. 0.3 (EN 60534-8-2)
•     Pressure difference Δpv100, Max. 400 kPa, Δpv0 Max. 800 kPa
•     Closing pressure Δps 1400 kPa
•     Angle of rotation 90°<) (Operating range 15 ... 90°<)
•     Pipe connectors External thread to ISO 228/1
•     Installation position Standing to lying (in relation to the stem)
•     Maintenance Maintenance-free
•     Materials Fitting Low-lead red casting brass (CuSn4Zn6P6)
•     Valve cone and spindle Stainless steel
•     Stem seal / stem bearing EPDM / Teflon (PTFE-GF15%)
•     Grease UNIsilikon (drinking water grade)
•     Actuator seat Plastic (PA66-GF30%)
•     Ball seat TEFZEL
•     Characterising disk TEFZEL
•     Dimensions / weights See «Dimensions and weights» on page 3
•     Motorizing See complete range of water solutions
•     ²⁾ Cavitation factor with a fully open valve
