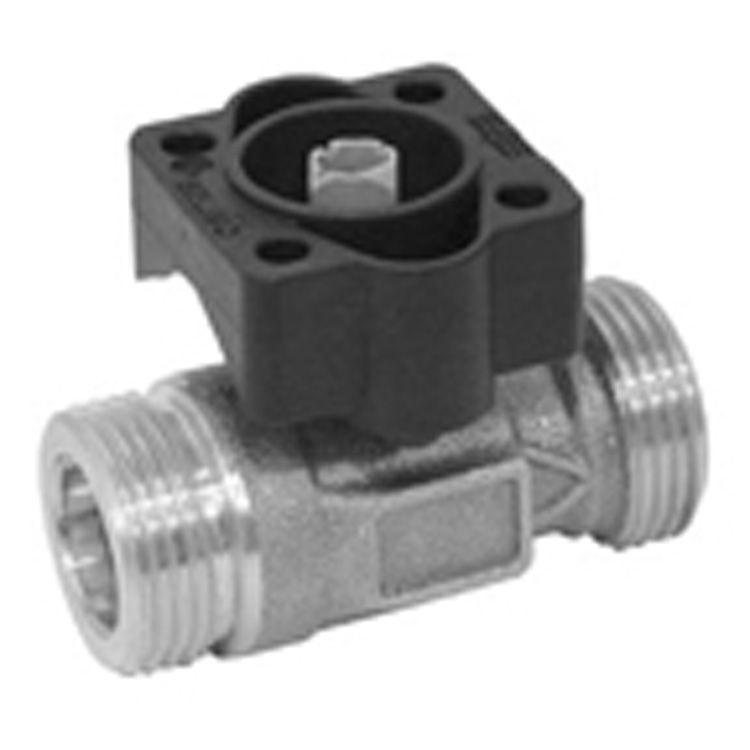

R404DK - Belimo 2-way control ball valve PN40

£151.20 £126.00 Price match guarantee
On request
SKU
R404DK
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeWater Valve
ManufacturerBelimo
Flow pattern2-Way
Valve typeBall Valve
Valve connectionExternal thread
PressurePN 40
DN (mm)DN 10
Flow rate - m³/h0.3 kvs

All Valves made by Belimo that are in stock with iacs are shipped for free or within 1-2 days.

The Belimo R404DK is a Valve used as a control or shutdown Valve in heating, ventilation, and air conditioning systems.

The Pressure Nominal of this Belimo control Valve is PN 40.

This R404DK Belimo Valve has 2 port opening connection.

IACS can help you get the best-priced Belimo Ball Valve for your system.

If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.

Features



  • Mode of operation The characterised control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and moves the ball of the valve – the throttling device – to the position dictated by the control signal. The valve is opened counterclockwise and closed clockwise.

  • Flow characteristic Equal-percentage flow control is ensured by the integrated characterising disc.

  • Patent Applied for.





•     Functional data Flow media Cold, warm and hot water, drinking water, low-temperature steam
•     Media temperature For water,+2°C ... +130°C, For steam +2°C ... +120°C
•     Rated pressure ps 2700 kPa
•     Flow characteristic Control path A – AB: equal percentage (VDI/VDE 2173), n(gl): 3.2, optimized in the opening range
•     Rangeability Sv see «Overview of types»
•     Leakage rate A Air bubble-tight (EN 12266)
•     Z Value 2) Min. 0.3 (EN 60534-8-2)
•     Pressure difference Δpv100, Max. 400 kPa, Δpv0 Max. 800 kPa
•     Closing pressure Δps 1400 kPa
•     Angle of rotation 90°<) (Operating range 15 ... 90°<)
•     Pipe connectors External thread to ISO 228/1
•     Installation position Standing to lying (in relation to the stem)
•     Maintenance Maintenance-free
•     Materials Fitting Low-lead red casting brass (CuSn4Zn6P6)
•     Valve cone and spindle Stainless steel
•     Stem seal / stem bearing EPDM / Teflon (PTFE-GF15%)
•     Grease UNIsilikon (drinking water grade)
•     Actuator seat Plastic (PA66-GF30%)
•     Ball seat TEFZEL
•     Characterising disk TEFZEL
•     Dimensions / weights See «Dimensions and weights» on page 3
•     Motorizing See complete range of water solutions
•     2) Cavitation factor with a fully open valve
