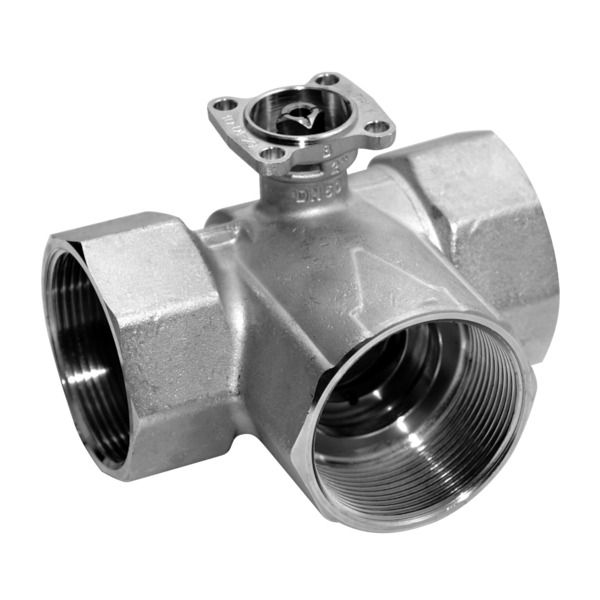

R3050-40-S4 - Belimo 3-way control ball valve | Characterised valve PN25
On request
SKU
R3050-40-S4
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Belimo |
| Flow pattern | 3-Way |
| Valve type | Ball Valve |
| Valve connection | Internal thread |
| Pressure | PN 25 |
| DN (mm) | DN 50 |
| Temperature range | +5°C to +100°C |
| Flow rate - m³/h | 40 kvs |
All Valves made by Belimo that are in stock with iacs are shipped for free or within 1-2 days.
The Belimo R3050-40-S4 is a Valve used as a control or shutdown Valve in heating, ventilation, and air conditioning systems. within a closed circuit.
The Pressure Nominal of this Belimo control Valve is PN 25.
This R3050-40-S4 Belimo Valve has 3 port opening connection.
IACS can help you get the best-priced Belimo Ball Valve for your system.
If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.
Features
- Mode of operation The characterized control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and move the ball of the valve – the throttling device – to the opening position dictated by the control signal. Open the ball valve counterclockwise and close it clockwise.
- Flow characteristic Equal-percentage characteristic of the flow rate ensured by the integral characterizing disc.
• Functional data Media Cold and hot water, water with max. 50% volume of glycol
• Temperature of medium +5°C ... +110°C 1)(lower or higher temperatures on request)
• Rated pressure ps see «Type overview»
• Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173)n(gl): see «Type overview»Bypass B – AB: linear, flow rate is 70% of kvs value
• Rangeability Sv See «Type overview»
• Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)Bypass B – AB: Approx. 1...2% of kvs value (in relation to the highest value within the DN (e.g. R313)
• Pipe connector Internal thread to ISO 7/1
• Differential pressure Δpmax 350 kPa (200 kPa for low-noise operation) Closing pressure Δps 1400 kPa
• Angle of rotation 90°<) (Operating range of control path A – AB 15 ... 90°<) ,bypass B – AB 15 ... 70°<) )
• Installation position Upright to horizontal (in relation to the stem)
• Maintenance Maintenance-free
• Materials Fitting Forged, nickel-plated brass body
• Valve cone and stem Stainless steel
• Stem Nickel-plated brass
• Stem seal O-Ring, EPDM
• Ball seat PTFE, O-Ring Viton
• Characterizing disk TEFZEL
• Dimensions / weights Dimensions See «Dimensions», page 3
• Motorizing see the complete overview of water solutions
• 1)The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
