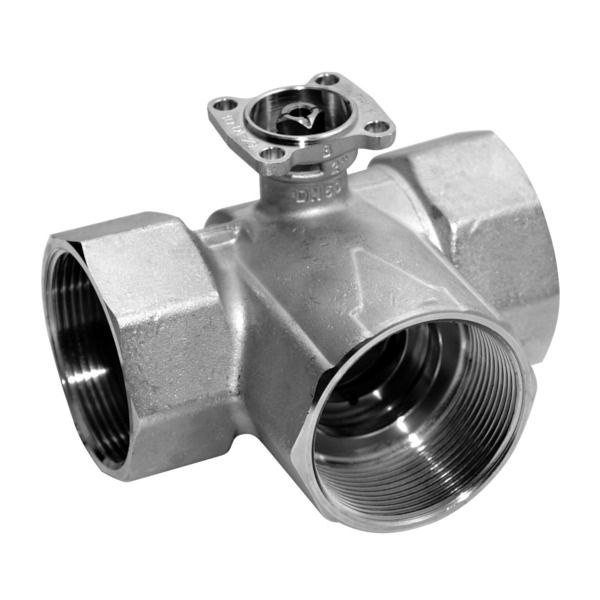

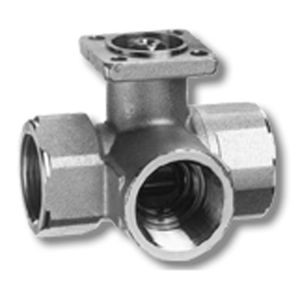

R3032-16-S3 - Belimo 3-way control ball valve | Characterised valve, PN25

All in-stock Belimo ball Valves with iacs are delivered for free or within 1-2 days.

The Belimo R3032-16-S3 is a Valve used in HVAC applications (heating, ventilation, and air conditioning) systems as a control or shutdown Valve . in a circuit that is closed.

The Pressure Nominal of this Valve is PN 25.

This R3032-16-S3 Belimo Valve has a 3 port opening connection.

IACS has the most economical Belimo Valves for your system.

If you have any issues about size or installation, please refer to the Belimo custom datasheet above or contact iacs for further information.

Features

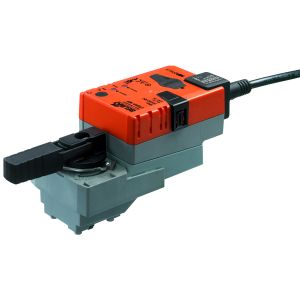

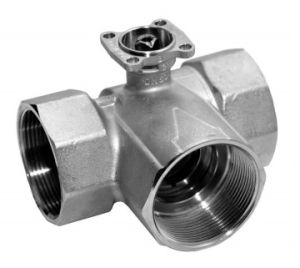

• Mode of operation The characterized control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and move the ball of the valve – the throttling device – to the opening position dictated by the control signal. Open the ball valve counterclockwise and close it clockwise.


• Flow characteristic Equal-percentage characteristic of the flow rate ensured by the integral characterizing disc.

•     Functional data Media Cold and hot water, water with max. 50% volume of glycol
•     Temperature of medium +5°C ... +110°C 1)(lower or higher temperatures on request)
•     Rated pressure ps see «Type overview»
•     Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173)n(gl): see «Type overview»Bypass B – AB: linear, flow rate is 70% of kvs value
•     Rangeability S_v See «Type overview»
•     Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)Bypass B – AB: Approx. 1...2% of kvs value (in relation to the highest value within the DN (e.g. R313)
•     Pipe connector Internal thread to ISO 7/1
•     Differential pressure Δp_max 350 kPa (200 kPa for low-noise operation) Closing pressure Δp_s 1400 kPa
•     Angle of rotation 90°<) (Operating range of control path A – AB 15 ... 90°<) ,bypass B – AB 15 ... 70°<) )
•     Installation position  Upright to horizontal (in relation to the stem)
•     Maintenance  Maintenance-free
•     Materials Fitting Forged, nickel-plated brass body
•     Valve cone and stem Stainless steel
•     Stem Nickel-plated brass
•     Stem seal O-Ring, EPDM
•     Ball seat PTFE, O-Ring Viton
•     Characterizing disk TEFZEL
•     Dimensions / weights Dimensions See «Dimensions», page 3
•     Motorizing see the complete overview of water solutions
•     ¹⁾The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
