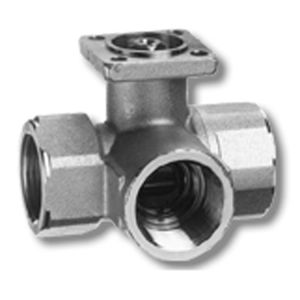

R3025-6P3-S2 - Belimo 3-way control ball valve | Characterised valve, PN40
£159.60
£133.00
On request
SKU
R3025-6P3-S2
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Belimo |
| Flow pattern | 3-Way |
| Valve type | Ball Valve |
| Valve connection | Internal thread |
| Pressure | PN 40 |
| DN (mm) | DN 25 |
| Temperature range | +5°C to +100°C |
| Flow rate - m³/h | 6.3 kvs |
All Belimo ball Valves with iacs that are in stock are supplied for free or within 1-2 days.
The Belimo R3025-6P3-S2 is a Valve used in HVAC systems (heating, ventilation, and air conditioning) systems as a control or shutdown Valve . in a circuit that is closed.
The Pressure Nominal of this type of Belimo Valve is PN 40.
This R3025-6P3-S2 Belimo Valve has a 3 port opening connection.
You can find the best Belimo Valve for your system at the greatest price at iacs.
If you have questions about size or installation, consult the Belimo custom datasheet above or contact iacs through email for personalised assistance.
Features
- Mode of operation The characterized control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and move the ball of the valve – the throttling device – to the opening position dictated by the control signal. Open the ball valve counterclockwise and close it clockwise.
- Flow characteristic Equal-percentage characteristic of the flow rate ensured by the integral characterizing disc.
• Functional data Media Cold and hot water, water with max. 50% volume of glycol
• Temperature of medium +5°C ... +110°C 1)(lower or higher temperatures on request)
• Rated pressure ps see «Type overview»
• Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173)n(gl): see «Type overview»Bypass B – AB: linear, flow rate is 70% of kvs value
• Rangeability Sv See «Type overview»
• Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)Bypass B – AB: Approx. 1...2% of kvs value (in relation to the highest value within the DN (e.g. R313)
• Pipe connector Internal thread to ISO 7/1
• Differential pressure Δpmax 350 kPa (200 kPa for low-noise operation) Closing pressure Δps 1400 kPa
• Angle of rotation 90°<) (Operating range of control path A – AB 15 ... 90°<) ,bypass B – AB 15 ... 70°<) )
• Installation position Upright to horizontal (in relation to the stem)
• Maintenance Maintenance-free
• Materials Fitting Forged, nickel-plated brass body
• Valve cone and stem Stainless steel
• Stem Nickel-plated brass
• Stem seal O-Ring, EPDM
• Ball seat PTFE, O-Ring Viton
• Characterizing disk TEFZEL
• Dimensions / weights Dimensions See «Dimensions», page 3
• Motorizing see the complete overview of water solutions
• 1)The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
