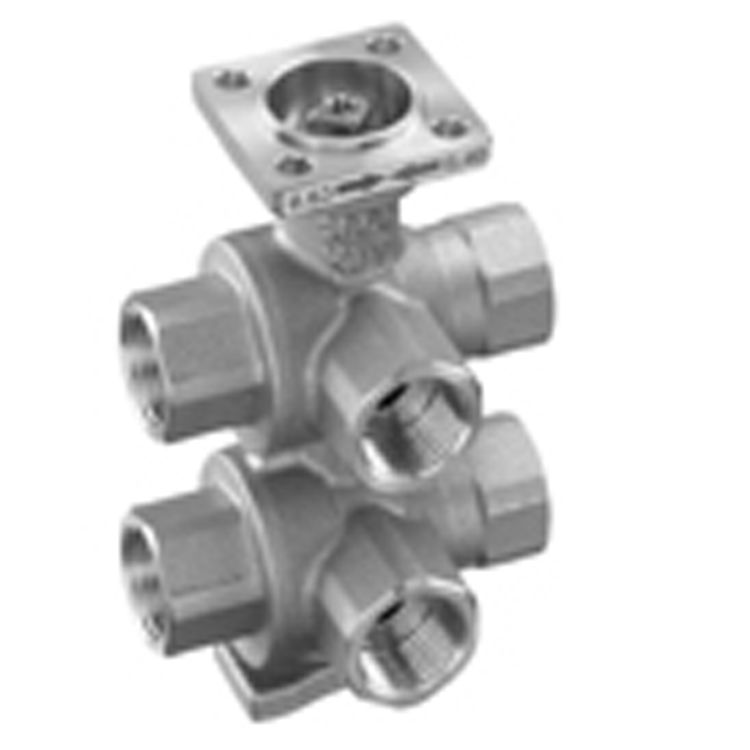

R3015-P25-1P3-B2 - Belimo 6-way characterised control valve, DN15
£143.64
£119.70
On request
SKU
R3015-P25-1P3-B2
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Belimo |
| Flow pattern | 6-Way |
| Valve type | Ball Valve |
| Valve connection | Internal thread |
| Pressure | PN 16 |
| DN (mm) | DN 15 |
| Temperature range | +6°C to +50°C |
| Flow rate - m³/h | 0.25 kvs |
All in-stock Belimo Characterised Valves with iacs are delivered for free or within 1-2 days.
The Belimo R3015-P25-1P3-B2 is a Valve used in HVAC applications (heating, ventilation, and air conditioning) systems as a control or shutdown Valve.
The Pressure Nominal of this Valve is PN 16.
The Valve is known and has a Nominal Diameter of DN 15.
This R3015-P25-1P3-B2 Belimo Valve has 6 port opening connection.
iacs can help you get the best-priced Belimo Characterised Valve for your system.
If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.
Features
- Mode of operation The 6-way ball valve is adjusted using a rotary actuator. The actuator is controlled by a modulating control system or via an MP bus signal and moves the ball of the valve to the position dictated.If the valve is turned in the clockwise direction (till the end stop), e.g. the cooling sequence is fully enabled, if the valve is turned in the counter-clockwise direction (90° ), e.g. the heating sequence is fully enabled.
• Functional data Media Cold and warm water
• Medium temperature Cold water +6 ... +25°C, Low temperature hot water +25° ... +50°C (80°C / 1 h)
• Permissible pressure ps 1000 kPa
• Flow characteristic Linear
• Flow rate See «Overview of types»
• Leakage rate A, leakproof EN 12666-1
• Pipe connectors Internal thread to ISO 7/1
• Differential pressure Δpmax 100 kPa
• Angle of rotation Cooling 0 ... 30°<),Dead zone 30 ... 60°<), Heating 60 ... 90°<)
• Installation position Upright to horizontal (in relation to the stem)
• Maintenance Maintenance-free
• Materials Fitting Forged brass, body nickel-plated
• Valve cone Chrome-plated brass
• Stem Nickel-plated brass
• Stem seal O ring, NBR
• Ball seat PTFE, O ring NBR
• Flow rate diaphragms Stainless steel
• Dimensions / weights Dimensions See «Dimensions», page 3
• Weight Approx. 1 kg
