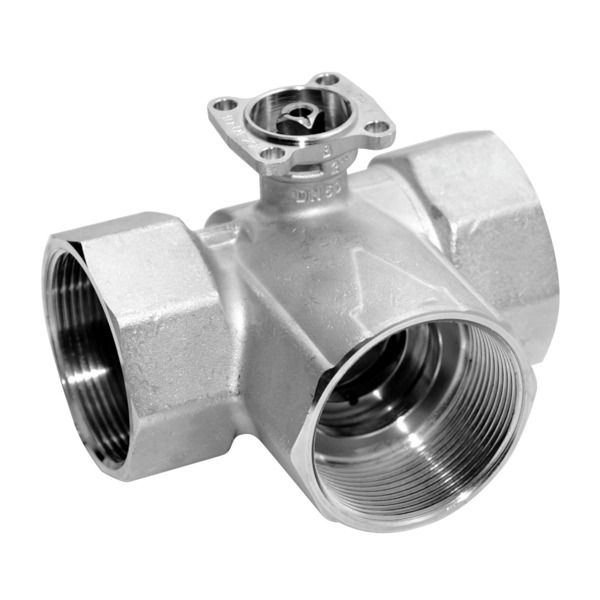

R3015-BL1 - Belimo 3-way control ball valve | Characterised valve, PN40

£90.72 £75.60 Price match guarantee
On request
SKU
R3015-BL1
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeWater Valve
ManufacturerBelimo
Flow pattern3-Way
Valve typeBall Valve
Valve connectionInternal thread
PressurePN 40
DN (mm)DN 15
Temperature range+5°C to +100°C
Flow rate - m³/h5.5 kvs

All Belimo ball Valves with iacs that are in stock are supplied for free or within 1-2 days.

The Belimo R3015-BL1 is a Valve used in HVAC systems (heating, ventilation, and air conditioning) systems as a control or shutdown Valve . in a circuit that is closed.

The Pressure Nominal of this type of Belimo Valve is PN 40.

This R3015-BL1 Belimo Valve has a 3 port opening connection.

You can find the best Belimo Valve for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or contact iacs through email for personalised assistance.

Features


  • Mode of operation The change-over ball valve is operated by a rotary actuator. The rotary actuator is controlled by an open-close signal.


•     Functional data Media Cold and hot water, water with max. 50% volume of glycol
•     Media temperature +5°C...+110°C 1)(lower and higher temperatures on request)
•     Rated pressure ps see «Type overview»
•     Leakage rate A, air bubble-tight (EN 12266-1)
•     Pipe connector Internal thread to ISO 7/1
•     Differential pressure Δpmax 350 kPa (200 kPa for low-noise operation) Closing pressure Δps 500 kPa
•     Angle of rotation 90°<) (Operating range 15 ... 90°<)
•     Installation position  Upright to horizontal (in relation to the stem)
•     Maintenance  Maintenance-free
•     Materials Fitting Forged, nickel-plated
•     Valve cone and stem Stainless steel
•     Stem seal O-Ring, EPDM
•     Ball seat PTFE, O-ring Viton
•     Dimensions / weights Dimensions See «Dimensions», page 3
•     Motorizing see the complete overview of water solutions
•     1)The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
