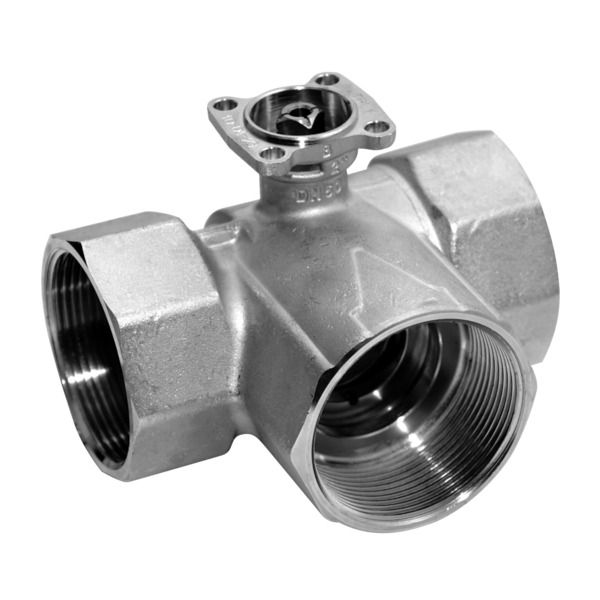

R3015-2P5-S1 - Belimo 3-way control ball valve | Characterised valve, PN40

£114.24 £95.20

On request

SKU

R3015-2P5-S1

Next Supplier Stock Update: 16/03/2025

EXPLORE MORE VERSIONS AND ACCESSORIES

LR24A-SR - Belimo Rotary actuator 5 Nm AC / DC 24 V | Belimo Actuators | ideal for ball valves

£162.96 £135.80

R3015-P63-S1 - Belimo 3-way control ball valve | Characterised valve PN40

£114.24 £95.20

R3015-S1 - Belimo 3-way change-over ball valve T-hole, PN40

£106.68 £88.90

R3015-P25-S1 - Belimo 3-way control ball valve | Characterised valve, PN40

£114.24 £95.20

LRF24-SR - Belimo Rotary actuator 4 Nm, 150 s, 95° AC / DC 24 V, modulating | ideal for ball valves

£259.56 £216.30

R3015-P4-S1 - Belimo 3-way control ball valve | Characterised valve, PN40

£114.24 £95.20

R3015-1P6-S1 - Belimo 3-way control ball valve | Characterised valve, PN40

£114.24 £95.20

R3015-1-S1 - Belimo 3-way control ball valve | Characterised valve, PN40

£114.24 £95.20

SR24P-SR - Belimo Rotary actuator for ball valve 18 Nm, 90° | ideal for rotary valves and butterfly valves

£393.12 £327.60

R3015-4-S1 - Belimo 3-way control ball valve | Characterised valve, PN40

£114.24 £95.20

R3015-BL1 - Belimo 3-way control ball valve | Characterised valve, PN40

£90.72 £75.60

TR24-SR - Belimo Rotary actuator 2 Nm | ideal for ball valves

£130.20 £108.50

LR24A-MOD Rotary Actuator, 5 Nm, AC/DC 24 V, 90 s - Belimo | ideal for ball valves

£218.40 £182.00

Overview

Manuals & Datasheets

DATA-SHEET

Product type	Water Valve
Manufacturer	Belimo
Flow pattern	3-Way
Valve type	Ball Valve
Valve connection	Internal thread
Pressure	PN 40
DN (mm)	DN 15
Temperature range	+5°C to +100°C
Flow rate - m³/h	2.5 kvs

Description

All Valves made by Belimo that are in stock with iacs are shipped for free or within 1-2 days.

The Belimo R3015-2P5-S1 is a Valve used as a control or shutdown Valve in heating, ventilation, and air conditioning systems. within a closed circuit.

The Pressure Nominal of this Belimo control Valve is PN 40.

This R3015-2P5-S1 Belimo Valve has 3 port opening connection.

IACS can help you get the best-priced Belimo Ball Valve for your system.

If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.

Features

Mode of operation The characterized control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and move the ball of the valve – the throttling device – to the opening position dictated by the control signal. Open the ball valve counterclockwise and close it clockwise.

Flow characteristic Equal-percentage characteristic of the flow rate ensured by the integral characterizing disc.

•     Functional data Media Cold and hot water, water with max. 50% volume of glycol
•     Temperature of medium +5°C ... +110°C 1)(lower or higher temperatures on request)
•     Rated pressure ps see «Type overview»
•     Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173)n(gl): see «Type overview»Bypass B – AB: linear, flow rate is 70% of kvs value
•     Rangeability S_v See «Type overview»
•     Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)Bypass B – AB: Approx. 1...2% of kvs value (in relation to the highest value within the DN (e.g. R313)
•     Pipe connector Internal thread to ISO 7/1
•     Differential pressure Δp_max 350 kPa (200 kPa for low-noise operation) Closing pressure Δp_s 1400 kPa
•     Angle of rotation 90°<) (Operating range of control path A – AB 15 ... 90°<) ,bypass B – AB 15 ... 70°<) )
•     Installation position Upright to horizontal (in relation to the stem)
•     Maintenance Maintenance-free
•     Materials Fitting Forged, nickel-plated brass body
•     Valve cone and stem Stainless steel
•     Stem Nickel-plated brass
•     Stem seal O-Ring, EPDM
•   Ball seat PTFE, O-Ring Viton
•   Characterizing disk TEFZEL
•     Dimensions / weights Dimensions See «Dimensions», page 3
•     Motorizing see the complete overview of water solutions
•     ¹⁾The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
