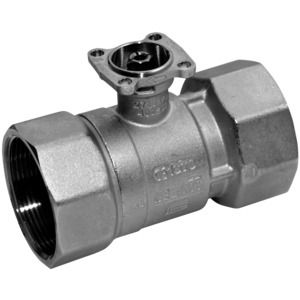

R2025-6P3-S2 - Belimo 2-way control ball valve | Characterised valve, Pressure Nominal PN40
£90.72
£75.60
On request
SKU
R2025-6P3-S2
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Belimo |
| Flow pattern | 2-Way |
| Valve type | Ball Valve |
| Valve connection | Internal thread |
| Pressure | PN 40 |
| DN (mm) | DN 25 |
| Temperature range | -10°C to +120°C |
| Flow rate - m³/h | 6.3 kvs |
All Valves made by Belimo that are in stock with iacs are shipped for free or within 1-2 days.
The Belimo R2025-6P3-S2 is a Valve used in HVAC systems (heating, ventilation, and air conditioning) systems as a control or shutdown Valve .
The Pressure Nominal of this Belimo control Valve is PN 40.
This R2025-6P3-S2 Belimo Valve has 2 port opening connection.
IACS can help you get the best-priced Belimo Ball Valve for your system.
If you have any queries concerning size or installation, please refer to the Belimo custom datasheet above or contact iacs by email.
The Belimo R2025-6P3-S2 is an outstanding control valve designed for HVAC systems. It is made from hot-pressed nickel-plated brass and features a stainless steel valve disk for added durability and reliability. The valve is equipped with a PTFE/EPDM O-ring seal and TEFZEL characterizing disk for efficient operation. The pressure nominal of this valve is PN 40 and it features two port openings for easy installation. It is capable of withstanding temperatures of up to +110°C and has an equal percentage characteristic curve to ensure precise control and accuracy. This control valve is perfect for use in demanding HVAC systems as it is able to provide reliable and accurate operation. The valve is operated by a rotary actuator and can be used as a control or shutdown valve. It has a simple installation process and is designed to provide years of trouble-free operation.
• Functional data Flow media Cold and hot water,water with max. 50% volume of glycol
• Temperature of medium +5°C ... +110°C 1)(lower or higher temperatures on request)
• Rated pressure ps see «Type overview»
• Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173)n(gl): see «Type overview»
• Rangeability Sv see «Type overview»
• Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)
• Pipe connector Internal thread to ISO 7/1
• Differential pressure Δpvmax 300 kPa (low noise operation Closing pressure Δps 1400 kPa)
• Angle of rotation 90°<) (Operating range 15 ... 90°<) )
• Installation position Upright to horizontal (in relation to the stem)
• Maintenance Maintenance-free
• Materials Fitting Forged, nickel-plated brass body
• Valve cone and stem Stainless steel
• Stem seal O-Ring, EPDM
• Ball seat PTFE, O-Ring Viton
• Characterizing disk TEFZEL
• Dimensions / Weights see «Dimensions and weights», page 3
• Motorizing see the complete overview of water solutions
• 1)The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
