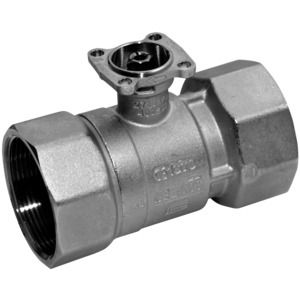

R2025-16-S2 - Belimo 2-way control ball valve | Characterised valve, PN40

All in-stock Belimo ball Valves with iacs are delivered for free or within 1-2 days.

The Belimo R2025-16-S2 is a Valve used as a control or shutdown Valve in heating, ventilation, and air conditioning systems.

The Pressure Nominal of this Valve is PN 40.

This R2025-16-S2 Belimo Valve has a 2 port opening connection.

IACS has the most economical Belimo Valves for your system.

If you have any issues about size or installation, please refer to the Belimo custom datasheet above or contact iacs for further information.

Features


• Mode of operation The characterized control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and move the ball of the valve – the throttling device – to the opening position dictated by the control signal. Open the ball valve counterclockwise and close it clockwise.


• Flow characteristic Equal-percentage characteristic of the flow rate ensured by the integral characterizing disc.

•     Functional data Flow media Cold and hot water,water with max. 50% volume of glycol
•     Temperature of medium +5°C ... +110°C ¹)(lower or higher temperatures on request)
•     Rated pressure ps see «Type overview»
•     Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2173)n(gl): see «Type overview»
•     Rangeability S_v see «Type overview»
•     Leakage rate Control path A – AB: Air bubble-tight (BO 1, DIN3230 T3)
•     Pipe connector Internal thread to ISO 7/1
•     Differential pressure Δp_vmax 300 kPa (low noise operation Closing pressure Δps 1400 kPa)
•     Angle of rotation 90°<) (Operating range 15 ... 90°<) )
•     Installation position   Upright to horizontal (in relation to the stem)
•     Maintenance Maintenance-free
•     Materials Fitting Forged, nickel-plated brass body
•     Valve cone and stem Stainless steel
•     Stem seal O-Ring, EPDM
•     Ball seat PTFE, O-Ring Viton
•     Characterizing disk TEFZEL
•     Dimensions / Weights see «Dimensions and weights», page 3
•     Motorizing see the complete overview of water solutions
•     ¹⁾The allowed media temperature can be limited, depending on the type of actuator. The correct values can be found in the corresponding actuator data sheets.
