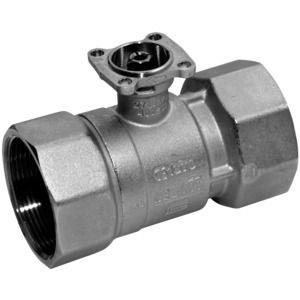

R2025-10-S2 - Belimo 2-way control ball valve | Characterised valve, PN40
£90.72
£75.60
On request
SKU
R2025-10-S2
Next Supplier Stock Update: 15/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Water Valve |
| Manufacturer | Belimo |
| Flow pattern | 2-Way |
| Valve type | Ball Valve |
| Valve connection | Internal thread |
| Pressure | PN 40 |
| DN (mm) | DN 25 |
| Temperature range | -10°C to +120°C |
| Flow rate - m³/h | 10 kvs |
All Belimo ball Valves with iacs that are in stock are supplied for free or within 1-2 days.
The Belimo R2025-10-S2 is a Valve used in HVAC applications (heating, ventilation, and air conditioning) systems as a control or shutdown Valve .
The Pressure Nominal of this type of Belimo Valve is PN 40.
This R2025-10-S2 Belimo Valve has a 2 port opening connection.
You can find the best Belimo Valve for your system at the greatest price at iacs.
If you have questions about size or installation, consult the Belimo custom datasheet above or contact iacs through email for personalised assistance.
The Belimo R2025-10-S2 2-way control ball valve is a high-performance valve designed for use in cold and warm water systems, including those containing up to 50% vol. of water with glycol. This valve is ideal for use in air handling units and heating systems, where it provides precise modulating control of the water side of the system.
The valve is air bubble tight, ensuring that there is no leakage or contamination of the water in the system. It is rated for a maximum pressure of 1600 kPa and has a closing pressure of 1400 kPa. The differential pressure maximum is 350 kPa, with a note of 200 kPa for low-noise operation.
The flow characteristic of the Belimo R2025-10-S2 valve is equal percentage, as specified in VDI/VDE 2178, and is optimised in the opening range for maximum performance. The valve is designed for easy installation, with internal thread pipe connectors according to ISO 7-1.
The valve operates through an angle of rotation of 90 degrees, with an operating range of 15 to 90 degrees. It can be installed in an upright or horizontal position in relation to the stem. The valve requires no maintenance, making it a reliable and cost-effective choice for your water system.
The valve housing is made from brass and is nickel-plated for durability. The closing element is made from stainless steel, while the stem and stem seal are also made from stainless steel and EPDM O-ring, respectively. The valve seat is made from PTFE, with an EPDM O-ring, and the characterising disc is made from TEFZEL.
Overall, the Belimo R2025-10-S2 2-way control ball valve is a reliable and high-performance valve that is suitable for use in a wide range of cold and warm water systems, providing precise control and reliable operation for many years.
