PGN1000FZ0 - Carel pCO Graphic Display PGDN1 MOUNTING DISPLAY + BUZZER FLUSH MOUNTING

Explore at IACS our full range of Carel Graphic Displays for pCO Controllers for your HVAC system

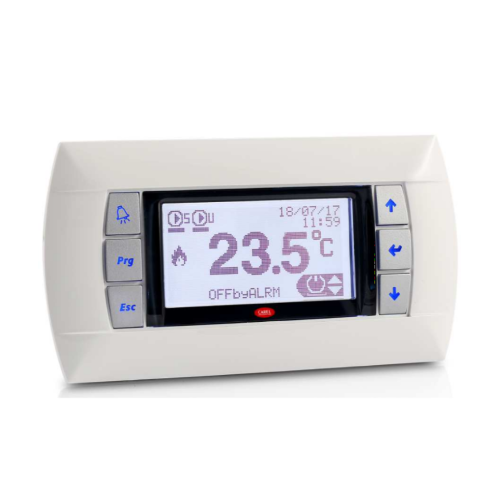

The Carel PGN1000FZ0 is a Graphic Display for Carel pCO Controllers, used in HVAC systems.

The Display Type is FSTN graphic.

The Graphic Resolution is 132 x 64 pixels.

The Size of the display area is 72x36 mm.

This Carel controller display has the Buzzer included.

For technical advice, refer to the Carel manualsheet and contact our IACS technical support team.

The pGN Graphic Display is an electronic gadget that is compatible with the earlier pGD0/pGD1/pGDE line terminals. It enables full management of graphics through the display of icons (defined at an application software development level), as well as the management of international fonts, in two sizes: 5x7 and 11x15 pixels.

The terminal doesn't need any additional software to function because the application software is already present on the pCO board. The front panel of the built-in version of the terminals offers a high level of protection, and the terminals have a wide operating temperature range (-20 to 60 °C) (IP65).
