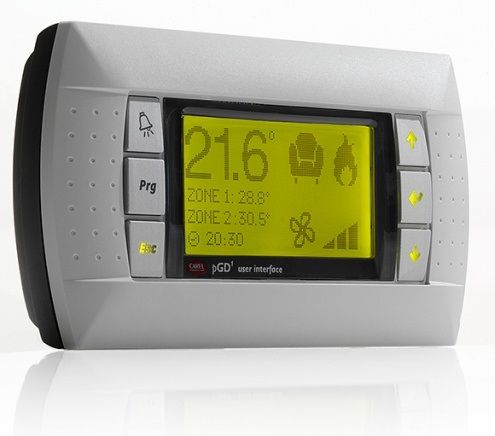

PGD1000F00 - Carel pCO Graphic Display, pGD1 Display, 132x64 pixels, panel mounting

Explore at iacs our full range of Carel Graphic Displays for pCO Controllers for your HVAC system

The Carel PGD1000F00 is a Carel Graphic Display for pCO Controllers, used in HVAC applications.

This version of pCO Display is Panel mounted.

This Carel display includes Green Backlight

The Display Type is FSTN graphic.

The Graphic Resolution is 132 x 64 pixels.

The size of the display area is 72x36 mm.

For technical advice, refer to the Carel manualsheet and contact our iacs technical support team.

The pGD Graphic Display is a technological advancement that is backwards-compatible with the previous PCOI/PCOT line terminals. It enables full management of graphics through the display of icons (defined at an application software development level) and the management of international fonts, in two sizes: 5x7 and 11x15 pixels. The pCO board contains the application software, therefore the terminal doesn't need any other software to function.

Additionally, the terminals have a wide operating temperature range (-20 to 60 °C), and the front panel of the built-in version provides a high level of safety (IP65).
