PGD0000FZ0 - This part has been phased out and replaced by the PGN0000FZ0
On request
SKU
PGD0000FZ0
Next Supplier Stock Update: 16/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| MANUAL | DATA-SHEET | BROCHURE |
 |
|
|
| Product type | Controller |
| IP rating | IP65 |
| Manufacturer | Carel |
| Programmable | Displays |
| Display type | pGD0 |
| Resolution | 120x32 pixels |
PGD0000FZ0 - This part has been phased out and replaced by the PGN0000FZ0
Explore at IACS our full range of Carel Graphic Displays for pCO Controllers for your HVAC system

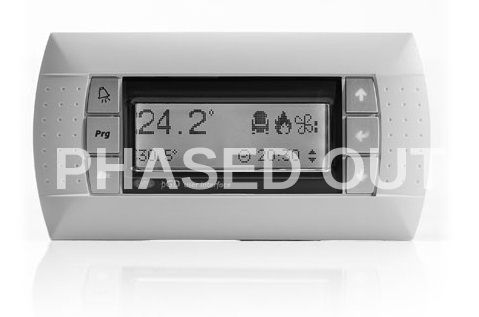

The Carel PGD0000FZ0 is a Graphic Display used for pCO Controllers and are compatible with the previous PCOI/PCOT line terminals.
This version is the Panel-mounted.
The Display type is FSTN graphic.
The Graphic Resolution is 120x32 pixels
The Backlight is Green LED.
For technical advice, refer to the Carel manualsheet and contact our IACS technical support team.
A technological improvement that is backwards compatible with the older PCOI/PCOT line terminals is the pGD graphic display. Through the display of icons (specified at an application software development level) and the control of international fonts, in two sizes: 5x7 and 11x15 pixels, it offers complete management of visuals.
The application software is already on the pCO board, therefore the terminal doesn't require any additional software to run.
|
Technical features |
|
|
Power supply |
from the power board through telephone cable (cod.
S90CONN00*) or from external source 18 to 30 Vdc
through TCONN6J000 |
|
Power input |
PGD1: 1.2 W; |
|
Operating conditions |
-20T60 °C, <90% rH
non-condensing |
|
Storage conditions |
-30T70 °C, <90% rH
non-condensing |
|
Index of protection |
IP65 with panel mounting, IP40 with wall mounting |
