P140A - Belimo Feedback potentiometer 140 Ohm

£80.72 £67.27 Price match guarantee
On request
SKU
P140A
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATA-SHEET
DATASHEET

Product typeAccessory
IP ratingIP54
ManufacturerBelimo

For more information on each component of your ventilation system, go to iacs.

All Belimo accessories are currently in stock and can be delivered for free or in one to two days.

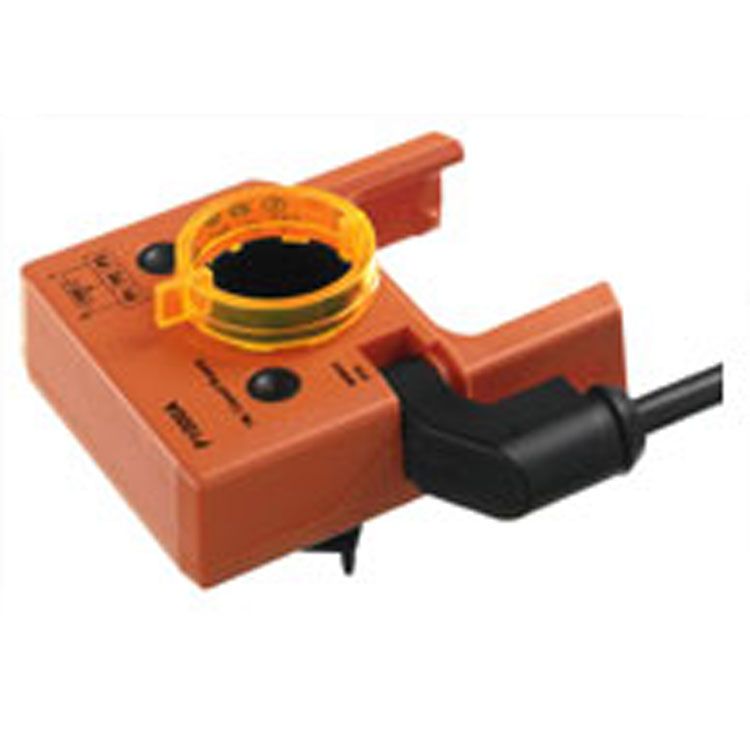

The Belimo P140A is a Feedback potentiometer 140 Ohm .

Iacs offers the most affordable Belimo system accessories.

Please refer to the aforementioned Belimo custom datasheet if you have any questions concerning installation or sizing, or contact iacs by email if you need more specialised help.

Features



  • Application The feedback potentiometers are used for modulating damper controls in conjunction with rigid feedback controllers. In combination with standard systems, these potentiometers are also used as damper position  or valve position indicators or as positioners for actuators operated in parallel.

  • Mode of operation A form-fit engagement is created between a driver disc and the spindel clamp(Damper actuators) or on the position indicator (Rotary actuators), causing the rotary movement of the actuator to be directly transferred to the feedback potentiometer.

  • Installation The feedback potentiometers are attached directly to the spindle clamp (Damper actuators) or on the position indicator (Rotary actuators) The guiding grooves between the housing and the switch ensure a tightly sealing fit.


•     Functional dataResistancesSee «Overview of types»
•     Tolerance ±5%
•     Loading capacitymax. 1 W
•     Linearity ±2%
•     ResolutionMin. 1%
•     Residual resistanceMax. 5% on both sides
•     ConnectionCable 1 m, 3 x 0.75 mm2
•     SafetyProtection classIII Safety extra-low voltageUL Class 2 Supply
•     Degree of protectionIP54 NEMA 2, UL Enclosure Type 2
•     Certification Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14CULus accoring to UL 60730-1A and UL 60730-2-14and CAN/CSA E60730-1:02
•     Mode of operationType 1
•     Rated impulse voltage 0.8 kV
•     Ambient temperature range –03 ... +50°C
•     Non-operating temperature–40 ... +80°C
•     Ambient humidity95% r.h., non-condensating
•    Maintenance Maintenance-free
•    Dimensions / WeightDimensionsSee «Dimensions» on page3
•    Weight Approx. 190g
