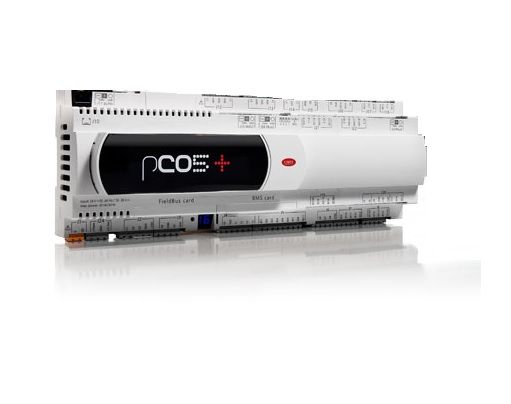

P+500B0A000L0 - PCO5+ Large version FB/BMS NO OPTO, NO USBDigital Inputs: 10 Digital Outputs: 18Analogue Inputs: 10 Analogue Output: 6 Communication ports:- 1 MODBUS Master Built in- 1 MODBUS Master/MP-BUS Optional (optional card required)- 1 MODBUS Slave Built in- 1 BMS (Optional cards required)- 1 pLAN port Built inThe pCO5plus offers more demanding designers up to five serial lines, three of which are always available and allow the protocol to be configured, plus two optional lines that can be configured in terms of both the protocol (Modbus®, BACnet™, CAREL, CANbus, Konnex LON) and the physical support (RS485, Ethernet, CAN, Konnex, Echelon®). Versions are available with both “Host” and “Device” USB ports for connecting a standard USB pendrive and connecting directly to a PC without needing serial coverters. Please note, these controllers require software to function. If not otherwise agreed, these are supplied blank - without software
The pCO5plus controller offers specific new functions for improving efficiency in HVAC/R systems:
• all analogue input channels can be configured as:
- digital input (voltage-free);
- analogue output (PWM or 0 to 10 V);
- wide selection of probes for different applications (NTC, PTC, PT100, PT500, PT1000, 0 to 1 V, 0 to 5 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA);
• integration of EVDEVO driver for control of electronic expansion valves with ultracap technology, guaranteeing stepper electronic expansion valves close in the event of power failures;
• connectivity, providing more demanding designers with up to 5 serial lines, 3 of which always available and configurable in terms of protocol (CAREL or Modbus®) and type (FieldBus or BMS), and 2 optional, again configurable in terms of protocol (Modbus®, BACnet™, CAREL, CANbus, Konnex, LonWorks) and physical support (RS485, Ethernet, Can, Konnex, FTT-10). Versions are available with USB “Host” and “Device” ports for programming the pCO5plus using a standard USB pendrive, or direct connection to a PC without requiring serial converters.
The new pCO5plus also guarantees perfect compatibility with the entire range of pCO3 and pCO5 controllers, both in terms of hardware (pin to pin compatible) and software, so as to protect and guarantee CAREL customers’ investments.
