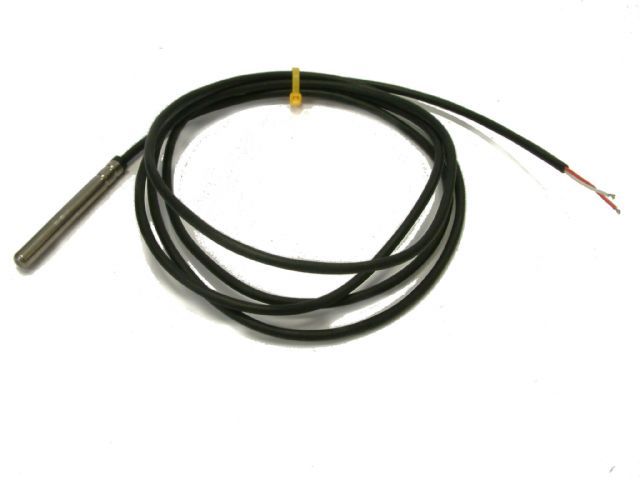

NTC030WP10 - Carel passive temperature probes Temperature sensor IP68, 3 m cable, -50T105 °C with 50 mm sensitive element
£37.24
£31.03
On request
SKU
NTC030WP10
Next Supplier Stock Update: 11/03/2025
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| MANUAL | BROCHURE |
 |
|
| Product type | Sensors & Stats |
| IP rating | IP67 |
| Output Signal | NTC10k Carel |
| Manufacturer | Carel |
| Sensor Type | Temperature |
| Sensor characteristics | Flying Lead |
| Length | 3 m |
Discover the full selection of Carel Temperature sensors and probes for your HVAC system at IACS.
Carel passive temperature probes are instruments that provide the heater's value to an electronic control, which the control subsequently transforms to temperature. They are utilised in HVAC/R applications and made of materials that guarantee a constant level of quality. They are a full range of products to meet the different requirements of diverse installations.
The Carel NTC030WP10 is a passive sensor for Data centres, Processes, Residentials, Cabinets, Cold Rooms.
The Cable length is 3 meters.
The material of the sensor cap is Metal.
Consult the Carel manualsheet and get in touch with our IACS technical support team for technical guidance.
Carel NTC030WP10 - SENSOR or passive temperature probes are used to, when connected to the control, measure the value of the heater and then turn it into temperature through the electronic control. TECHNICAL FEATURES:
Length: 3m
Storage conditions: -50T105 °C
Operating range: -50T105 °C
Connections: Stripped ends, dimensions 5±1mm
Sensor: NTC 10 kΩ ±1% a 25 °C Beta 3435
Dissipation factor (in air): ca. / approx. 2,2 mW/°C
Thermal constant over time (in air): ca. / approx. 30 s
Cable: Two-wire with double sheath, AWG22, OD 3.5 mm max
Sensitive element index of protection: IP68
Sensitive element housing: PP/Co with AISI 316 outer cap
Category of resistance to heat and fire: Flame retardant The precision reached thanks to the technical solutions adopted in the development of these sensors and the reliability proven by the tests performed make CAREL NTC probes reliable and affordable transducers for measuring temperature. The range of CAREL temperature sensors now includes TS* series (with two new immersion sensors, NTC and PT1000, suitable exclusively for hydronic applications) and a new pass-through temperature sensor to be used in the blast chiller applications, where the sensor is used for measuring the temperature in the product heart.
