NR24A-SR - Belimo Rotary actuator for control BV 10 Nm | Belimo Actuators | ideal for ball valves

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo NR24A-SR is a kind of Actuator used in HVAC applications and air ventilation systems.

To control the damper, this kind of Actuator turns it by Rotary motion.

The Torque used by the NR24A-SR is 10 Nm.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

NR24A-SR - Rotary actuator for control BV 10 Nm

•   AC / DC 24 V, modulating
•   Running time motor 90 s / 90°
•   IP 54, Manual override temporary, permanent
•   Operating range DC 2...10 V
•   Connection cable length = 1 m
•   Position feedback DC 2...10 V
•   Position indicator mechanical

Features


• Mode of operation The actuator is controlled by means of a standard control signal DC 0 ... 10 V. It opens to the position dictated by this signal. The measuring voltage U allows the damper position (0 ... 100%) to be electrically indicated and serves as a follow-up control signal for other actuators.


• Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assembly tool is integrated in the plug-on position indicator. The mounting position in relation to the ball valve can be selected in 90° steps.


• Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.


• Position feedback U5 Operation of the ball valve is optimised by a limiting ring. This ring reduces the angle of rotation from 95° to 90° , i.e. U5 will deviate from Y by approximately 0.4 V when the valve is opened.




•     Electrical data Nominal voltage AC 24 V, 50/60 Hz  DC 24 V
•     Nominal voltage range AC 19,2 ... 28,8 V / DC 21,6 ... 28,8 V
•     Power consumption In operation 1.5 W @ nominal torque
•     At rest 0.2 W
•     For wire sizing 3.5 VA
•     Connection Cable 1 m, 4 x 0.75 mm2
•     Parallel connection Possible, note performance data
•     Functional data Torque (nominal torque) Min. 10 Nm @ nominal voltage
•     Control Control Signal Y DC 0 ... 10 V, typical input impedance 100kΩ Operating range DC 2 ... 10 V
•     Position feedback (Measuring voltage U) DC 2 ... 10 V, max. 1 mA
•     Position accuracy ±5%
•     Manual override Gearing latch disengaged with pushbutton, can be locked
•     Running time 90 s / 90°
•     Sound power level Max. 35 dB (A) (without the valve)
•     Position indication Mechanical, pluggable
•     Protection class III Safety extra-low voltage / UL Class 2 Supply
•     Degree of protection IP54 in any mounting position NEMA 2, UL Enclosure Type 2
•     EMC CE according to 2004/108/EC
•     Certification cULus according to UL 60730-1A and UL 60730-2-14and CAN/CSA E60730-1:02Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
•     Mode of operation Type 1
•     Rated impulse voltage 0.8 kV
•     Control pollution degree 3
•     Ambient temperature 0 ... +50°C
•     Media temperature +5 ... +110°C in (control) ball valve –10°C with stem heating upon request
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity 95% r.H., non-condensating
•     Wartung wartungsfrei

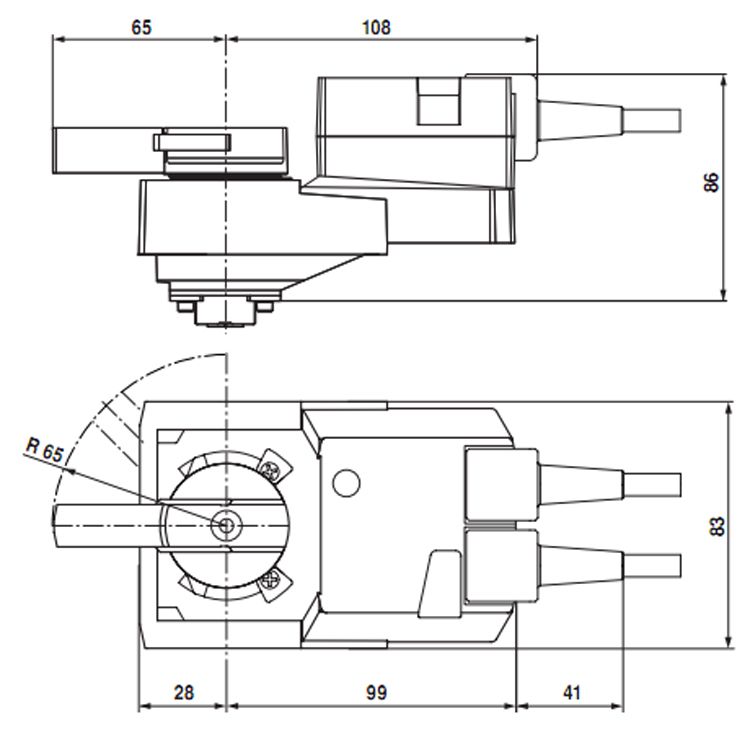

•     Dimensions / Weight Dimensions See «Dimensions» on page 3
•     Weight ca. 750 g
