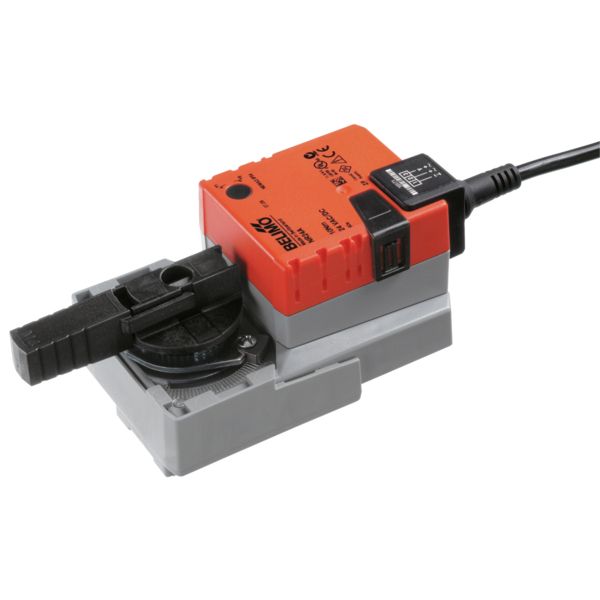

NR24A - Belimo Rotary actuator for control BV 10 Nm | ideal for ball valves

NR24A - Rotary actuator for control BV 10 Nm

•   AC / DC 24 V, Open/Close, 3-point
•   Running time motor 90 s / 90°
•   IP 54, Manual override temporary, permanent
•   Connection cable length = 1 m
•   Position indicator mechanical

Features


• Simple direct mounting Straightforward direct mounting on the ball valve with only one screw. The assembly tool is integrated in the plug-on position indicator. The mounting position in relation to the ball valve can be selected in 90° steps.


• Manual override Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stop.


• High operational reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz  DC 24 V
•     Nominal voltage range AC 19,2 ... 28,8 V / DC 21,6 ... 28,8 V
•     Power consumption In operation 1.5 W @ nominal torque
•     At rest 0.2 W
•     For wire sizing 3.5 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Parallel connection Possible, note performance data
•     Functional data Torque (nominal torque) Min. 10 Nm @ nominal voltage
•     Manual override Gearing latch disengaged with pushbutton, can be locked
•     Running time 90 s / 90° <)
•     Sound power level Max. 35 dB (A) (without the valve)
•     Position indication Mechanical, pluggable
•     Protection class III Safety extra-low voltage / UL Class 2 Supply
•     Degree of protection IP54 in any mounting positionNEMA 2, UL Enclosure Type 2
•     EMC CE according to 2004/108/EC
•     Certification cULus according to UL 60730-1A and UL 60730-2-14and CAN/CSA E60730-1:02Certified to IEC/EN 60730-1 and IEC/EN 60730-2-14
•     Mode of operation Type 1
•     Rated impulse voltage 0.8 kV
•     Control pollution degree 3
•     Ambient temperature 0 ... +50°C
•     Media temperature +5 ... +110°C in (control) ball valve–10°C with stem heating upon request
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity 95% r.H., non-condensating
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 750 g
