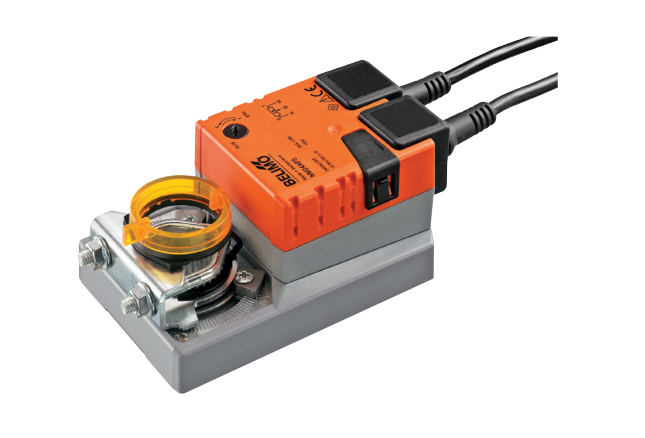

NM24AP5 - Belimo Damper actuator 10 Nm, 150 s / 90° AC/DC 24 V, built-in potentiometer

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo NM24AP5 is a type of Actuator used to control dampers in HVAC systems and applications.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the NM24AP5 is 10 Nm.

This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

NM24AP5 - Damper actuator 10 Nm, 150 s / 90° AC/DC 24 V, built-in potentiometer

•    Open/Close, 3-point
•    IP 54, Manual override by means of push-button
•    Connection PVC cable 1m
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mechanical integral
•    Spindle driver universal spindle clamp

Features


• Simple direct mounting Simple direct mounting on the damper shaft with a universal shaft clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.
• Manual override Manual operation with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked).
• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.
• High functional reliability The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.
• Position feedback With integrated feedback potentiometer position feedback 0...100%

Electrical data

• Nominal voltage AC/DC 24 V, 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
• Power consumption In operation 1.5 W
• Power consumption in rest position 0.2 W
• Power consumption for wire sizing 3.5 VA
• Feedback potentiometer 5 kΩ
• Feedback potentiometer note Tolerance ±5% Loading capacity 1 W
• Connection supply / control Cable 1 m, 3 x 0.75 mm²
• Connection feedback potentiometer Cable 1 m, 3 x 0.75 mm²
• Parallel operation Yes (note the performance data)

Functional data

• Torque motor 10 Nm
• Direction of motion motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)
• Manual override with push-button, can be locked
• Angle of rotation Max. 95°
• Angle of rotation note can be limited on both sides with adjustable mechanical end stops
• Running time motor 150 s / 90°
• Sound power level motor 35 dB (A)
• Mechanical interface Universal shaft clamp 8...26.7 mm
• Position indication Mechanically, pluggable

Safety

• Protection class IEC/EN III Safety Extra-Low Voltage (SELV)
• Protection class UL UL Class 2 Supply
• Protection class feedback potentiometer IEC/EN III Safety Extra-Low Voltage (SELV)
• Degree of protection IEC/EN IP54
• Degree of protection NEMA/UL NEMA 2
• Enclosure UL Enclosure Type 2
• EMC CE according to 2014/30/EU
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Certification UL cULus according to UL60730-1A, UL60730-2- 14 and CAN/CSA E60730-1:02
• Certification UL note The UL marking on the actuator depends on the production site, the device is UL-compliant in any case
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Rated current voltage potentiometer 0.8 kV
• Control pollution degree 3
• Ambient temperature -30...50°C
• Storage temperature -40...80°C
• Ambient humidity Max. 95% r.H., non-condensing
• Servicing maintenance-free
