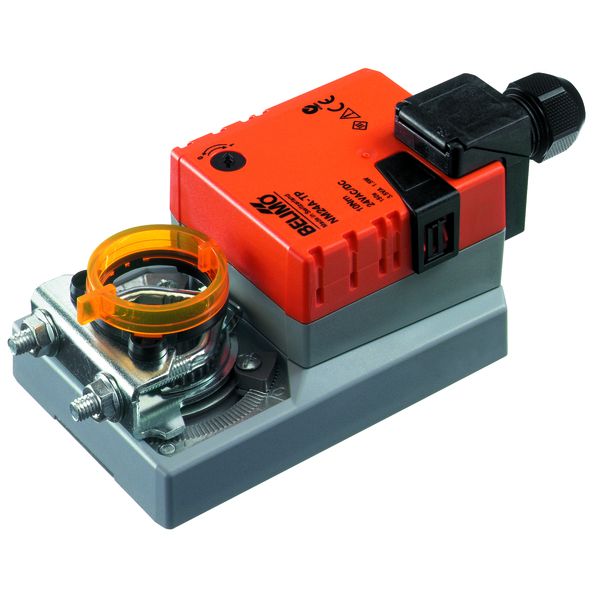

NM24A-TP - Belimo Damper actuator 10 Nm, 150 s, 95°

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo NM24A-TP is a type of Actuator used to control dampers in HVAC systems and applications.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the NM24A-TP is 10 Nm.

This Rotary Actuator needs to be supported by a power supply of 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

NM24A-TP - Damper actuator 10 Nm, 150 s, 95°

•    AC / DC 24 V, Open/Close, 3-point
•    IP 54, Manual override with push-button
•    Control with single- / 2-wire contact
•    Connection Screw terminal with cover IP54
•    Position feedback DC 2...10 V
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mechanical integral
•    Spindle driver universal spindle clamp

Features


• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied withan anti-rotation strap to prevent the actuator from rotating.


• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when theend stop is reached.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz  DC 24 V
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1.5 W @ nominal torque
•     At rest 0.2 W
•     For wire sizing 4 VA
•     Functional dataTorque (nominal torque)Min. 10 Nm @ nominal voltage
•     Direction of rotationReversible with switch 0 or 1
•     Manual overrideGearing latch disengaged with pushbutton,detentable
•     Angle of rotationMax. 95°, limited on both sidesby means of adjustable, mechanical end stops
•     Running time150 s / 90°
•     Sound power levelMax. 35 dB (A)
•     Position indicationMechanical, pluggable
•     SafetyProtection classIII Safety extra-low voltage
•     Degree of protectionIP54 in any mounting position
•     EMCCE according to 89/336/EEC
•     Mode of operationType 1 (to EN 60730-1)
•     Rated impulse voltage0.8 kV (to EN 60730-1)
•     Control Pollution Degree3 (to EN 60730-1)
•     Ambient temperature range–30 ... +50°C
•     Non-operating temperature–40 ... +80°C
•    Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•    MaintenanceMaintenance-free
•    Dimensions / WeightDimensionsSee «Dimensions» on page 2
•    WeightApprox. 750 g
