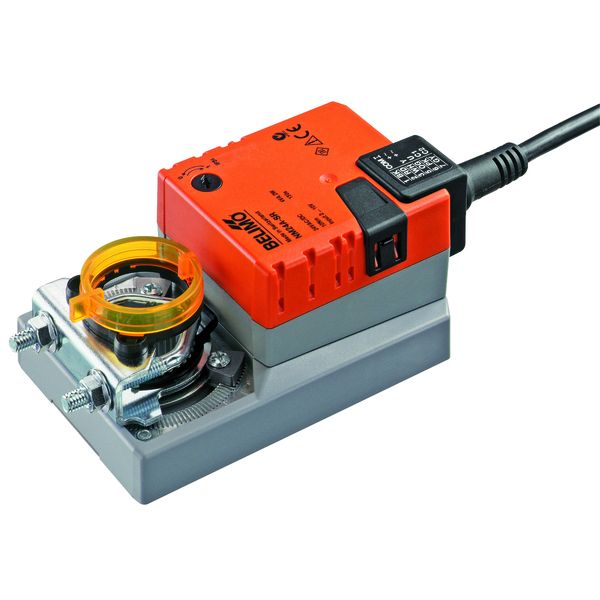

NM24A-SR - Belimo Damper actuator 10 Nm, 150 s, 95° AC / DC 24 V
£194.04
£161.70
Only 1 left
In stock
SKU
NM24A-SR
EXPLORE MORE VERSIONS AND ACCESSORIES
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Input Signal | 0..10 Vdc |
| Manufacturer | Belimo |
| Power Supply | 24Vac/Vdc |
| Torque | 10 Nm |
| Running time | 140 to 150 sec |
| Actuator type | Rotary |
Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.
The Belimo NM24A-SR is a kind of Actuator used to manage dampers in HVAC applications and systems.
To control the damper, this kind of Actuator turns it by Rotary motion.
The Torque used by the NM24A-SR is 10 Nm.
This Belimo Actuator requests a power supply of 24Vac/Vdc.
The ideal Belimo Actuators for your system are most affordable at iacs.
If you have questions concerning size or installation, refer to the Belimo custom datasheet above or email iacs for individualised support.
Features
- Mode of operation The actuator is controlled by means of a standard control signal DC 0 ... 10 V. It opens to the position dictated by this signal. The measuring voltage U allows the damper position (0 ... 100%) to be electrically indicated and serves as a follow-up control signal for other actuators.
- Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.
- Manual override Manual operation is possible with the self-resetting pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed).
- Adjustable angle of rotation Adjustable angle of rotation with mechanical end stops.
- High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.
The Belimo NM24A-SR damper actuator is a versatile and reliable solution for controlling airflow in HVAC systems. With its IP54 rating and manual override with push-button, this actuator is built to withstand harsh conditions and provide easy operation.
The actuator features a control range of DC 0-10V and an adjustable auxiliary switch, making it easy to fine-tune the airflow to your specific needs. The actuator also features a reversible rotation and a mechanical integral angle of rotation limit. The spindle driver is a universal spindle clamp and is powered by a nominal voltage of AC 24V or DC 24V, with a power consumption of 2W during operation and 0.4W at rest. The actuator is also equipped with a 1m PVC cable and a 4VA wire sizing.
It has a torque of 10 Nm at nominal voltage and its control signal Y is DC 0 ... 10 V, typical input impedance 100 kΩ. It also comes with position feedback and accuracy of ±5%. It has a maximum rotation angle of 95° and it is maintenance free.
With a weight of 800g, it is light weight and easy to install. It is also CE certified according to 89/336/EEC and is suitable for ambient temperature range of -30 to +50°C. This Belimo NM24A-SR damper actuator is a highly efficient and durable solution for controlling airflow in HVAC systems.
