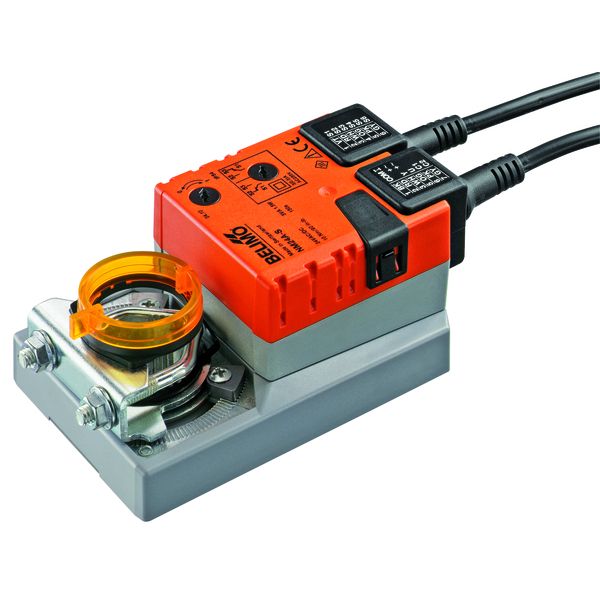

NM24A-S - Belimo Damper actuator 10 Nm, 150 s, 95° AC / DC 24 V

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo NM24A-S is an Actuator used in HVAC systems and applications to manage dampers.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the NM24A-S is 10 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

NM24A-S - Damper actuator 10 Nm, 150 s, 95° AC / DC 24 V

•    Open/Close, 3-point
•    IP 54, Manual override with push-button
•    Control with single- / 2-wire contact
•    Auxiliary switch 0...100 % adjustable
•    Connection PVC cable 1m
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mechanical integral
•    Spindle driver universal spindle clamp

Features


• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.


• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stop.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.



•



•     Electrical data Nominal voltage AC 24 V, 50/60 Hz  DC 24 V
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1.5 W @ nominal torque
•     At rest 0.2 W
•     For wire sizing 4 VA
•     Auxiliary switch 1 x SPDT, 1 mA ... 3 (0.5) A, AC 250 V (0 ... 100% adjustable)
•     Connection MotorAuxiliary switchCable 1 m, 3 x 0.75 mm2Cable 1 m, 3 x 0.75 mm2
•     Functional data Torque (nominal torque) Min. 10 Nm @ nominal voltage
•     Direction of rotation Reversible with switch 0  or 1
•     Manual override Gearing latch disengaged with pushbutton, self-resetting
•     Angle of rotation Max. 95° , limited on both sides by means of adjustable, mechanical end stops
•     Running time 150 s
•     Sound power level Max. 35 dB (A)
•     Position indication Mechanical, pluggable
•     Protection class III Safety extra-low voltage
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 89/336/EEC
•     Mode of operation Type 1 (to EN 60730-1)
•     Ambient temperature range –30 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 850 g
