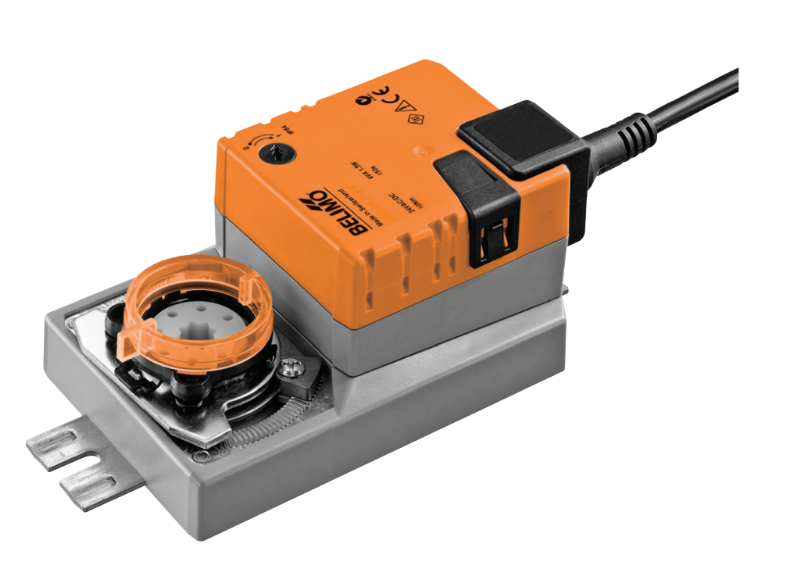

NM24A-F - Belimo Damper actuator 10 Nm, 150 s, 95° AC / DC 24 V, form fit 8x8 mm

NM24A-F - Damper actuator 10 Nm, 150 s, 95° AC / DC 24 V, form fit 8x8 mm

•    Open/Close, 3-point
•    IP 54, Manual override by means of push-button
•    Control with single- / 2-wire contact
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mechanical integral

Features


• Simple direct mounting Simple direct mounting on the damper shaft with form-fit hollow spindle. For screw fitting to the application the actuator is supplied with two fastening clips, one on each short side.

• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).

• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stop.

• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1.5 W @ nominal torque
•     At rest 0.2 W
•     For wire sizing 3.5 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Functional data Torque (nominal torque) Min. 10 Nm @ nominal voltage
•     Direction of rotation Reversible with switch 0 or 1
•     Manual override with pushbutton, can be locked
•     Angle of rotation Max. 95°, limited on both sides by means of adjustable, mechanical end stops
•     Running time 150 s / 90°
•     Sound power level Max. 35 dB (A)
•     Mechanical interface FOrm fit 8x8 mm
•     Safety Protection class III Safety extra-low voltage (SELV)
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 89/336/EEC
•     Mode of operation Type 1 (EN 60730-1)
•     Rated impulse voltage 0.8 kV (EN 60730-1)
•     Control pollution degree 3 (EN 60730-1)
•     Ambient temperature range –30 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating
•     Servicing Maintenance-free
