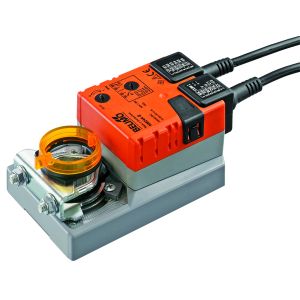

NM24A - Belimo Damper actuator 10 Nm, 150 s, 95° AC / DC 24 V | for adjusting dampers in technical building installations

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo NM24A is an Actuator used in HVAC systems and applications to manage dampers.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the NM24A is 10 Nm.

The power supply requested for this Rotary Actuator is 24Vac/Vdc.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

The Belimo NM24A is a Damper Actuator with a torque of 8 Nm and a Power Supply of AC 230 V.

Features

•    Open/Close, 3-point
•    IP 54, Manual override by means of push-button
•    Control with single- / 2-wire contact
•    Connection PVC cable 1m
•    Direction of rotation reversible (right/left)
•    Angle of rotation limit. mechanical integral

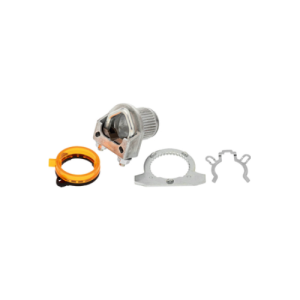

•    Spindle driver universal spindle clamp

Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.

Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).

Adjustable angle of rotation Adjustable angle of rotation with mechanical end stop.

High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz DC 24 V
•     Nominal voltage range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1.5 W @ nominal torque
•     At rest 0.2 W
•     For wire sizing 3.5 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Functional data Torque (nominal torque) Min. 10 Nm @ nominal voltage
•     Direction of rotation Reversible with switch 0 or 1
•     Manual override Gearing latch disengaged with pushbutton, detentable
•     Angle of rotation Max. 95°<) , limited on both sides by means of adjustable, mechanical end stops
•     Running time 150 s / 90°<)
•     Sound power level Max. 35 dB (A)
•     Position indication Mechanical, pluggable
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 89/336/EEC
•     Mode of operation Type 1 (EN 60730-1)
•     Rated impulse voltage 0.8 kV (EN 60730-1)
•     Control pollution degree 3 (EN 60730-1)
•     Ambient temperature range –30 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (EN 60730-1)
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 750 g
