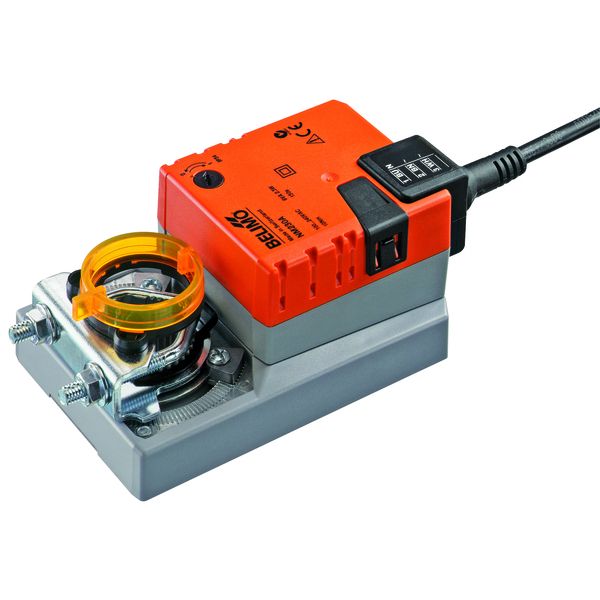

NM230A - Belimo Damper actuator 10 Nm, 150 s, 95° AC 230 V

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo NM230A is an Actuator used in HVAC systems and applications to manage dampers.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the NM230A is 10 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

NM230A
Damper actuator
10 Nm, 150 s, 95°
AC 230 V, Open/Close, 3-point
IP 54, Manual override with push-button
Control with single- / 2-wire contact
Connection PVC cable 1m
Direction of rotation reversible (right/left)
Angle of rotation limit. mechanical integral
Spindle driver universal spindle clamp

Features


• Simple direct mounting Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.


• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).


• Adjustable angle of rotation Adjustable angle of rotation with mechanical end stop.


• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

See technical Infos & Manuals
