MFT-C Adapter to Service-Tool ZTH - Belimo

To learn more about each component of your ventilation system, Visit iacs.

All Belimo accessories can be delivered for free or within one to two days if they are currently in stock.

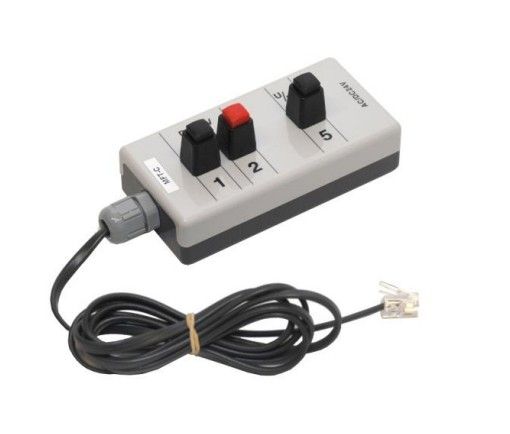

The Belimo MFT-C is a Adapter to Service-Tool ZTH .

The most economical Belimo system accessories are available from Iacs.

If you have any queries about installation or sizing, please refer to the aforementioned Belimo bespoke datasheet. If you require more specialised assistance, please email iacs.

Mode of operation: The actuator is connected to the MFT-C adapter, using the pressure clamps. With the inserted jack of the ZN230-24 power adapter on the MFT-C adapter, the connected actuator gets supplied with power. The connection to the ZTH or ZIP-USB-MP happens via the RJ12 plug on the cable of the MFT-C adapter.

Electrical data:

• Power Supply AC 24V, 50/60 Hz / DC 24V
• Operating range AC / DC 24V ± 20%
• Power consumption in operation 1.5 VA / 1 W
• Connection Supply ZN230-24 or power supply class II Actuator Pressure clamps Tool 1 meter cable with RJ12 plug

Functional data:

• Supported actuators Programmable and communicative actuators MF, MP

Safety:

• Protection class III Safety extra-low voltage
• EMV CE in accordance with 2004/108/EG
• Operating temperature 0…+50° C
• Mode of operation Type 1
• Control pollution degree 2
• Rated impulse voltage 330V
