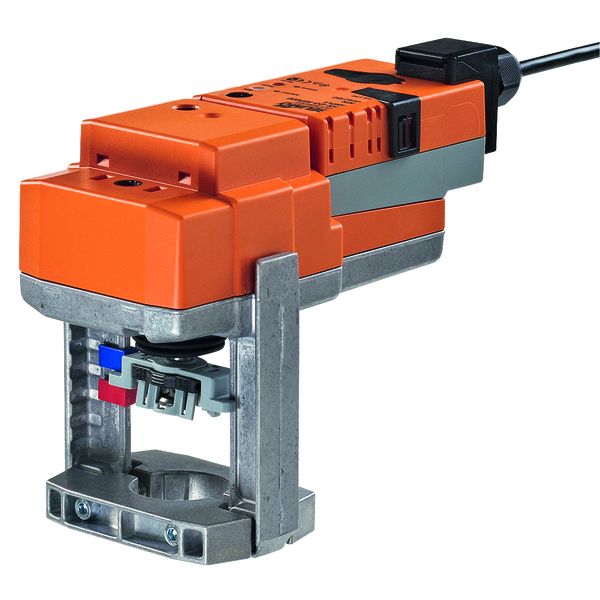

LV24A-MP-TPC Globe Valve Actuator, AC/DC 24 V

• 500 N, 15 mm
• AC/DC 24 V, modulating, MP-Bus
• Operating range DC 2...10 V, adjustable
• Position feedback DC 2...10 V, adjustable
• Actuating time motor 150 s / 15 mm
• IP 54, Manual override temporary, permanent
• Connection terminal with cable PVC 1 m

Mode of operation: Conventional operation: The actuator is connected with a standard modulating signal of DC 0 ... 10V and travels to the position defined by the positioning signal. The measuring voltage U serves for the electrical display of the actuator position 0 ... 100% and as slave control signal for other actuators. Operation on the MP-Bus: The actuator receives its digital positioning signal from the higher level controller via the MP-Bus and travels to the position defined. Connection U serves as communication interface and does not supply an analogue measuring voltage.

Converter for sensors: Connection option for a sensor (passive or active sensor or switching contact). The MP actuator serves as an analogue/digital converter for the transmission of the sensor signal via MP-Bus to the higher level system.

Parameterisable actuators: The factory settings cover the most common applications. Input and output signals and other parameters can be altered with the PC-Tool MFT-P or with the Service tool ZTH EU.

Direct mounting: Simple direct mounting on the globe valve by means of form-fit hollow clamping jaws. The actuator can be rotated by 360° on the valve neck.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked). The stroke can be adjusted by using a hexagon socket screw key (4 mm), which is inserted into the top of the actuator. The stroke spindle extends when the key is rotated clockwise.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator: Refer to the valve documentation for suitable valves, their permitted medium temperatures and closing pressures.

Position indication: The stroke is indicated mechanically on the bracket with tabs. The stroke range adjusts itself automatically during operation.

Home position: Factory setting: Actuator spindle is retracted. When valve-actuator combinations are shipped, the direction of motion is set in accordance with the closing point of the valve. The first time the supply voltage is switched on, i.e. at the time of commissioning, the actuator carries out an adaption, which is when the operating range and position feedback adjust themselves to the mechanical setting range. The actuator then moves into the position defined by the positioning signal.

Direction of stroke switch: When actuated, the direction of stroke switch changes the running direction in normal operation.

Adaption and synchronisation: An adaption can be triggered manually by pressing the „Adaption“ button or with the PC-Tool. Both mechanical end stops are detected during the adaption (entire setting range). Automatic synchronisation after pressing the gearbox disengagement button is configured. The synchronisation is in the home position (0%). The actuator then moves into the position defined by the positioning signal. A range of settings can be adapted using the PC-Tool (see MFT-P documentation)

Electrical data:

• Nominal voltage AC/DC 24 V
• Nominal voltage frequency 50/60 Hz
• Nominal voltage range AC 19.2...28.8 V / DC 21.6...28.8 V
• Power consumption in operation 2.5 W
• Power consumption in rest position 1.5 W
• Power consumption for wire sizing 4 VA
• Connection supply / control Terminals with cable 1 m, 4 x 0.75 mm²(Terminal 4 mm²)
• Parallel operation Yes (note the performance data)

Functional data:

• Actuating force 500 N
• Positioning signal Y DC 0...10 V
• Positioning signal Y note Input impedance 100 kΩ
• Control signal Y variable Open-close 3-point (AC only) Modulating (DC 0...32 V)
• Operating range Y DC 2...10 V
• Operating range Y variable Start point DC 0.5...30 V End point DC 2.5...32 V
• Position feedback U DC 2...10 V
• Position feedback U note Max. 0.5 mA
• Position feedback U variable Start point DC 0.5...8 V End point DC 2.5...10 V
• Position accuracy 5% absolute
• Manual override Gear disengagement with push-button, can be locked
• Nominal stroke 15 mm
• Actuating time 150 s / 15 mm
• Actuating time variable 90...150 s / 15 mm
• Adaption setting range manual (automatic on first power-up)
• Adaption setting range variable No action Adaption when switched on Adaption after pushing the gear disengagement button
• Override control MAX (maximum position) = 100% MIN (minimum position) = 0% ZS (intermediate position, AC only) = 50%
• Override control variable MAX = (MIN + 33%)...100% MIN = 0%...(MAX – 33%) ZS = MIN...MAX
• Sound power level motor 45 dB(A)
• Position indication Mechanically, 5...15 mm stroke

Safety:

• Protection class IEC/EN III Safety extra-low voltage
• Degree of protection IEC/EN IP54
• EMC CE according to 2004/108/EC
• Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
• Mode of operation Type 1
• Rated impulse voltage supply / control 0.8 kV
• Control pollution degree 3
• Ambient temperature 0...50°C
• Non-operating temperature -40...80°C
• Ambient humidity 95% r.h., non-condensing
• Maintenance Maintenance-free

Weight: 1.4 kg
