LV230A-TPC Globe Valve Actuator, AC 230 V - Belimo | ideal for globe valves

£241.08 £200.90 Price match guarantee
On request
SKU
LV230A-TPC
Next Supplier Stock Update: 15/03/2025
Manuals & Datasheets
 DATASHEET
DATASHEET

Product typeActuator
IP ratingIP54
ManufacturerBelimo
Power Supply230Vac, 1Ph, 50Hz
Torque500 N
Running time140 to 150 sec
Ideal for globe valves

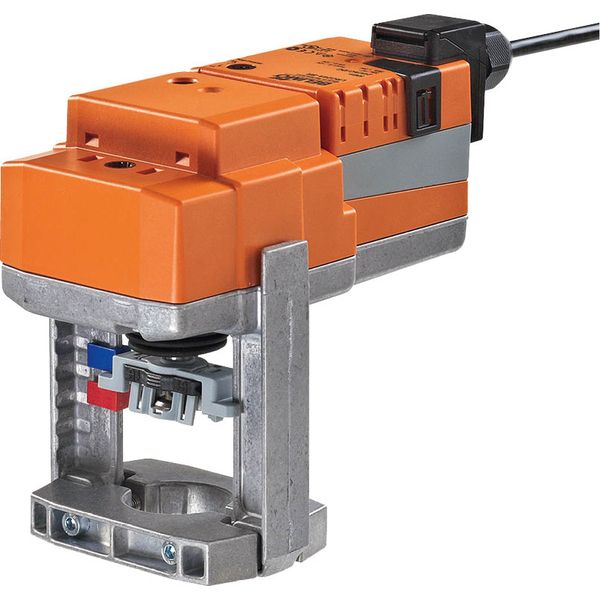

LV230A-TPC Globe Valve Actuator, AC 230 V

  • 500 N, 15 mm,
  • AC 230 V, 3-point
  • Actuating time motor 150 s / 15 mm
  • IP 54, Manual override temporary, permanent
  • Connection Terminal with cable PVC 1 m

Simple direct mounting: Simple direct mounting on the globe valve by means of form-fit hollow clamping jaws. The actuator can be rotated by 360° on the valve neck.

Manual override: Manual override with push-button possible (the gear is disengaged for as long as the button is pressed or remains locked). The stroke can be adjusted by using a hexagon socket screw key (4 mm), which is inserted into the top of the actuator. The stroke spindle extends when the key is rotated clockwise.

High functional reliability: The actuator is overload protected, requires no limit switches and automatically stops when the end stop is reached.

Combination valve/actuator: Refer to the valve documentation for suitable valves, their permitted medium temperatures and closing pressures.

Position indication: The stroke is indicated mechanically on the bracket with tabs. The stroke range adjusts itself automatically during operation.

Home position: Factory setting: Actuator spindle is retracted. When valve-actuator combinations are shipped, the direction of motion is set in accordance with the closing point of the valve.

Direction of stroke switch: When actuated, the direction of stroke switch changes the running direction in normal operation.

Electrical data:

  • Nominal voltage AC 230 V
  • Nominal voltage frequency 50/60 Hz
  • Nominal voltage range AC 85...265 V
  • Power consumption in operation 2 W
  • Power consumption in rest position 1 W
  • Power consumption for wire sizing 4 VA
  • Connection supply / control Terminals with cable 1 m, 3 x 0.75 mm² (Terminal 4 mm²)
  • Parallel operation Yes (note the performance data)

Functional data:

  • Actuating force motor 500 N
  • Manual override With push-button, can be locked
  • Nominal stroke 15 mm
  • Actuating time motor 150 s / 15 mm
  • Sound power level motor 45 dB(A)
  • Position indication Mechanically, 5...15 mm stroke

Safety:

  • Protection class IEC/EN II Protective insulated
  • Protection class UL UL Class 2 Supply
  • Degree of protection IEC/EN IP54
  • Degree of protection NEMA/UL NEMA 2, UL Enclosure Type 2
  • EMC CE according to 2014/30/EU
  • Low voltage directive CE according to 2014/35/EU
  • Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
  • Certification UL cULus according to UL 60730-1A, UL 60730-2-14 and CAN/CSA E60730-1:02
  • Mode of operation Type 1
  • Rated impulse voltage supply / control 4 kV
  • Control pollution degree 3
  • Ambient temperature range 0...50°C
  • Non-operating temperature -40...80°C
  • Ambient humidity 95% r.h., non-condensing
  • Maintenance Maintenance-free

Weight: 1.4 kg
