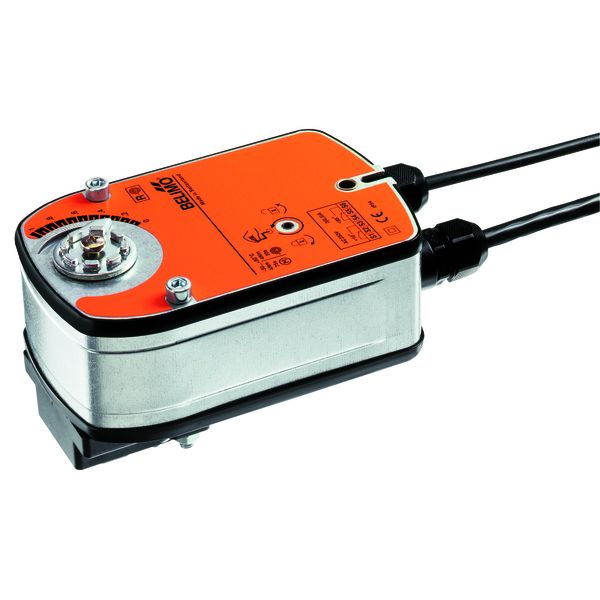

LRF230-S-O - Belimo Rotary actuator 4 Nm, 40...75 s (0...4 Nm) | ideal for ball valves

Find all parts for your ventilation system at iacs, the Free Delivery and 1-2 Delivery is available for all the Belimo Actuators in stock

The Belimo LRF230-S-O is a type of Actuator used in HVAC and ventilation systems.

This kind of Actuator rotates the damper in order to control it.

The force applied by the Torque of the LRF230-S-O is 4 Nm.

This Rotary Actuator needs to be supported by a power supply of 230Vac.

Find the appropriate Belimo Actuator for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or send an email to iacs to get personalised guidance.

LRF230-S-O - Rotary actuator 4 Nm, 40...75 s (0...4 Nm)

•    AC 230 V, Open/Close, 2 x SPDT
•    Manual override with integrated position stop
•    Running time spring approx. 20 s
•    Control Open/Close with single-wire contact
•    Auxiliary switch 2 x int., potential-free, fix 5°, 85°
•    Emergency control closedYES

Features


• Mode of operation The actuator moves the ball valve to its normal working position while tensioning the return spring at the same time. If the power supply is interrupted, the energy stored in the spring moves the ball valve back to its safe position.


• Simple direct mounting With WLF mounting kit (accessory) simple direct mounting on the ball valve with only one screw. The mounting position in relation to the ball valve can be selected in 90° steps.


• Manual override The ball valve can be manually operated and fixed in any position using a hand crank. Release of the locking mechanism can be achieved manually or automatically by applying the supply voltage.



• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.


• Signalling The actuator has two auxiliary switches with fixed settings. They permit a 10° or 85° angle of rotation to be signalled.


• Combination valve actuators Refer to the valve documentation for suitable valves, their permitted media temperatures and closing pressures.

•     Electrical data Nominal voltage AC 230 V, 50/60 Hz
•     Power supply range AC 198 ... 264 V
•     Power consumption Spring return 5 W at nominal torque Holding position 3 W, For wire sizing 7 VA
•     Auxiliary switch 2 x SPDT, 3 (0.5) A, AC 250 V II Switching points: 10° fixed, 85° fixed
•     Connection Motor Cable 1 m, 2 x 0.75 mm2, Auxiliary switch, Cable 1 m, 6 x 0.75 mm2
•     Parallel connection Yes (Note performance data for supply!)
•     Functional data Torque (nominal torque) Motor Min. 4 Nm at nominal voltage Spring return Min. 4 Nm
•     Direction of rotation LRF230-S Deenergised NC, ball valve closed (A – AB = 0%), LRF230-S-O Deenergised NO, ball valve open (A – AB = 100%)
•     Manual override With hand crank, can be fixed in any position
•     Angle of rotation 95°
•     Running time Motor 40 ... 75 s (0 ... 4 Nm) Spring return ~20 s at –20 ... 50°C / max. 60 s at –30°C
•     Noise level Motor Max. 50 dB (A), Spring return ~62 dB (A)
•     Service life Min. 60’000 emergency settings
•     Position indication Mechanical
•     Safety Protection class II Totally insulated
•     Degree of protection IP54
•     EMC CE according to 89/336/EEC Low voltage directive CE according to 2006/95/EC
•     Mode of operation Type 1 (to EN 60730-1)
•     Rated impulse voltage 4 kV (to EN 60730-1)
•     Control pollution degree 3 (to EN 60730-1)
•     Ambient temperature range –30 ... +50°C
•     Media temperature +5 ... +100°C (in ball valve)
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 1.4 kg (without ball valve)
