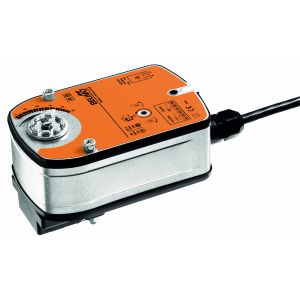

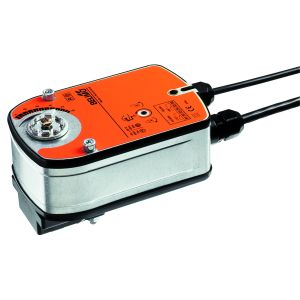

LRF230 - Belimo Rotary actuator NC 4 Nm, 40...75 s (0...4 Nm), AC 230 V | ideal for ball valves

At IACS we provide Free Delivery and Next 1-2 day Delivery for all the Belimo Actuators in stock.

The Belimo LRF230 is an Actuator used in HVAC applications and air ventilation systems.

This type of Actuator applies a Rotary motion to regulate the damper.

The Torque force applied by the LRF230 is 4 Nm.

The power supply requested for this Rotary Actuator is 230Vac.

IACS has the best prices on the right Belimo Actuators for your system.

Consult the Belimo custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

LRF230 - Rotary actuator NC 4 Nm, 40...75 s (0...4 Nm), AC 230 V

•    Modulating, MFT
•    Manual override with integrated position stop
•    Running time spring approx. 20 s
•    Control Open/Close with single-wire contact
•    Auxiliary switch 2 x int., potential-free, fix 5°, 85°
•    Emergency control closedYES

Features


• Mode of operation The actuator moves the ball valve to its normal working position while tensioning the return spring at the same time. If the power supply is interrupted, the energy stored in the spring moves the ball valve back to its safe position.


• Simple direct mounting With WLF mounting kit (accessory) simple direct mounting on the ball valve with only one screw. The mounting position in relation to the ball valve can be selected in 90° steps.


• Manual override The ball valve can be manually operated and fixed in any position using a hand crank. Release of the locking mechanism can be achieved manually or automatically by applying the supply voltage.



• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.


• Combination valve actuators Refer to the valve documentation for suitable valves, their permitted media temperatures and closing pressures.

•     Electrical data Nominal voltage AC 230 V, 50/60 Hz
•     Power supply range AC 198 ... 264 V
•     Power consumption Spring return 5 W at nominal torque
•     Holding position 3 W
•     For wire sizing 7 VA
•     Connection Cable 1 m, 2 x 0.75 mm2
•     Parallel connection Yes (Note performance data for supply!)
•     Functional data Torque (nominal torque) Motor Min. 4 Nm at nominal voltage
•     Spring return Min. 4 Nm
•     Direction of rotation LRF230 Deenergised NC, ball valve closed (A – AB = 0%) LRF230-O Deenergised NO, ball valve open (A – AB = 100%)
•     Manual override With hand crank, can be fixed in any position
•     Angle of rotation 95°
•     Running time Motor 40 ... 75 s (0 ... 4 Nm)
•     Spring return ~20 s at –20 ... 50°C / max. 60 s at –30°C
•     Noise level Motor Max. 50 dB (A)
•     Spring return ~62 dB (A)
•     Service life Min. 60’000 emergency settings
•     Position indication Mechanical
•     Safety Protection class II Totally insulated
•     Degree of protection IP54
•     vEMC CE according to 89/336/EEC
•     Low voltage directive CE according to 2006/95/EC
•     Mode of operation Type 1 (to EN 60730-1)
•     Rated impulse voltage 4 kV (to EN 60730-1)
•     Control pollution degree 3 (to EN 60730-1)
•     Ambient temperature range –30 ... +50°C
•     Media temperature +5 ... +100°C (in ball valve)
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity range 95% r.H., non-condensating (to EN 60730-1)
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 2
•     Weight Approx. 1.4 kg (without ball valve)
